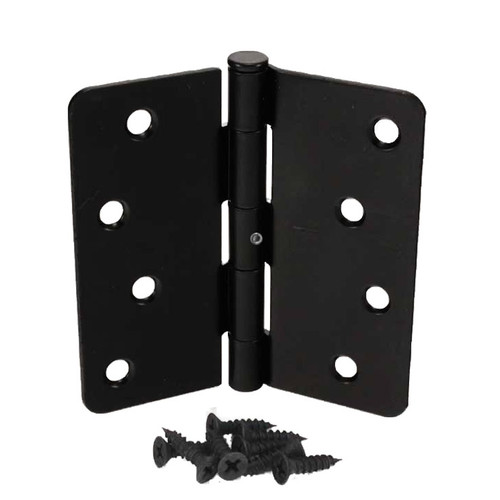

Hager / Hinge / 4" x 4" / 1/4" Radius Corner / Non-Removable Pin / Black / RC1741 4x4 1D NRP

(No reviews yet) Write a Review
Item: rc1741-4x4-1d-nrp
MSRP:$13.97
$8.69
(You Save: $5.28 )
"Warning": You are selecting an option which does not include an interior pack. Please check box to confirm

Matching Hardware

    35140,33610,33480,31290

Coordinates

Description

Hager Hinge

CATEGORY:                   Door Hinges

MANUFACTURER:         Hager Companies

HINGE SIZE:                   4" x 4"     (101.60 x 101.60 mm)

HINGE RADIUS:             Round Corners       (1/4" Radius)

FINISH:                           Black - 1D

MATERIAL:                    Steel with Steel Pin

PACKAGING:                 One Hinge with Screws.

HANDING:                      Reversible - will work on right hand or left hand doors.

SHIPPING WEIGHT:      .70 lbs.

Helpful Hints:   The Non-Removable Pin (NRP) has a small set screw in the body of the barrel.  This set screw is tightened down against the pin.  The pin has a groove in the position where the set screw makes contact, allowing the set screw to seat.  The set screw is positioned so it cannot be reached unless the door is opened.  If pin removal is necessary, the set screw is merely removed and the pin tapped from the bottom in the usual manner.  See Dimensions tab for illustration.

Please contact us with any questions @ 1-866-755-LOCK (5625).


Non-Removable Pin Set Screw Diagram

Hager Hinge

HINGE SIZE:                       4" x 4"     (102mm x 102mm)

HINGE RADIUS:                  Round Corners       (1/4" Radius)

MATERIAL:                        Steel with Steel Pin

# OF KNUCKLES:               5

# OF HOLES:                      8

WOOD SCREW SIZE:         3/4" x 9 FH

GAUGE OF METAL:            .085"

PIN DIAMETER:                  .234"

REMOVABLE PIN:              No, unless security screw is removed with allen-head wrench, while door is                                            in the open position.

HANDING:                           Reversible - will work on right hand or left hand doors.
