Description

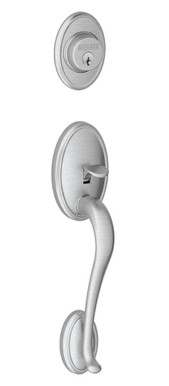

Wakefield Single Cylinder Handleset
The timeless design of the Wakefield works with any style in any room of your home.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Wakefield
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Residential Grade 1 Security / 1" Throwbolt
Solid Forged Brass
KEYED CYLINDER: Standard: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Chrome - 626
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 5.85 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The timeless design of the Wakefield works with any style in any room of your home.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Wakefield
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Residential Grade 1 Security / 1" Throwbolt
Solid Forged Brass
KEYED CYLINDER: Standard: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Chrome - 626
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 5.85 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Wakefield Handleset
A (Handle Length): 18-5/8" (473mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm)
C (Projection From Door): 3-1/8" (79mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable 8-3/8" to 10"
A (Handle Length): 18-5/8" (473mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm)
C (Projection From Door): 3-1/8" (79mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable 8-3/8" to 10"
Wakefield Single Cylinder Handleset
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-5/8" to 2".
Packed with extra mounting screws to accommodate 2" doors.
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: Round Corner, Square Corner or Drive-In.
STRIKE PLATES: Deadbolt: 1-1/8" x 2-3/4"
Handle: 2-1/4" full lip. Strike options include: Round or Square Corner.
LATCH BOLT: Deadbolt: Full 1" Throw; 7/8" Housing
Handle: Plainlatch - 1/2" throw
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: ANSI/BHMA A156.36-2016 Commercial Grade 1, ANSI/BHMA A156.40-2015 Residential Grade AAA.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-5/8" to 2".
Packed with extra mounting screws to accommodate 2" doors.
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: Round Corner, Square Corner or Drive-In.
STRIKE PLATES: Deadbolt: 1-1/8" x 2-3/4"
Handle: 2-1/4" full lip. Strike options include: Round or Square Corner.
LATCH BOLT: Deadbolt: Full 1" Throw; 7/8" Housing
Handle: Plainlatch - 1/2" throw
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: ANSI/BHMA A156.36-2016 Commercial Grade 1, ANSI/BHMA A156.40-2015 Residential Grade AAA.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
