Schlage

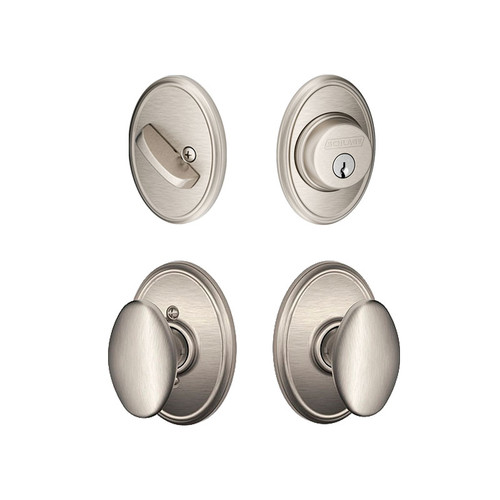

Schlage / Siena with Wakefield Rose and Deadbolt / B60 Single Cylinder Deadbolt with Passage Knob

No reviews yet Write a Review
SKU:
fb10sie619wkf

Siena Passage Knob with Wakefield Rose and B60 Single Cylinder Deadbolt The Siena egg-shaped Passage Knob with Wakefield Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will bring sub…

See more
Limited-Time Offers:
Product Details
Siena Passage Knob with Wakefield Rose and B60 Single Cylinder Deadbolt

The Siena egg-shaped Passage Knob with Wakefield Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will bring subtle elegance to any room design.

CATEGORY:                    Door Knobs

MANUFACTURER:          Schlage

COLLECTION:                 F Series - Decorative Collection

PRODUCT FAMILY:        Siena

STYLE:                             Egg Shape - Knob.

INTERIOR:                       Easy Installation

EXTERIOR:                      Heavy Duty Residential Grade 1 Security / 1"" Throwbolt

KEYED CYLINDER:         Pin & Tumbler / 5-Pin Key System

FINISH:                             Aged Bronze - 716

FUNCTION:                      Keyed Entry Set with Passage Knob & Deadbolt / Typically used on front or back doors.
                                          Deadbolt is locked or unlocked by key outside or turnbutton inside.

HANDING:                        This Knob will work on either a right or left hand door application.

WARRANTY:                    Manufacturer - Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:        3.1 lbs.


Please contact us with any questions @ 1-866-755-LOCK (5625). "
Siena Knob with Wakefield Rose

Siena Knob Dimensions

A (Base Dimensions):            2.84" W x 4.00" H x 0.732" Depth
B (Projection From Door):      2-3/8"    (60mm)
C (Knob Diameter):                2-3/4"    (70mm)
Siena Knob Keyed Entry Set

DOOR PREP:                  Deadbolt:  Cross Bore:  2-1/8" or 1-1/2"
                                                           Edge Bore:  1"
                                                           Latch Face:  1" x 2-1/4"
                                         Knob:       Cross Bore:  2-1/8"
                                                           Edge Bore:  1"
                                                           Latch Face:  1" x 2-1/4"

BACKSET:                      Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                         Knob:       Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:       Standard 1-3/8" to 1-3/4"

KEYED CYLINDER:        Deadbolt: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway

KNOB:                              Passage

LATCH FACEPLATES:   1" x 2-1/4" Latch options include:  Round Corner or Drive-In.

STRIKE PLATES:           Deadbolt: 1-1/8" x 2-3/4"
                                         Knob: 1-5/8" x 2-1/4" Round Corner Strike.

LATCH BOLT:                 Deadbolt: Solid Zinc bolt; Full 1" Throw; 7/8" housing
                                         Knob: Plainlatch - 1/2" throw; 7/8" housing

DOOR HANDING:           Will work on either right or left hand doors.

ANSI/BHMA:                   Deadbolt: A156.5-2001 Grade 1
                                         Knob: A156.2, 1996, Grade 2. housing

ADA:                                N/A

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com
