Schlage

Schlage / Siena with Wakefield Rose and Deadbolt / B60 Single Cylinder Deadbolt with Passage Knob

No reviews yet Write a Review
SKU:
fb10sie619wkf

Siena Passage Knob with Wakefield Rose and B60 Single Cylinder Deadbolt The Siena egg-shaped Passage Knob with Wakefield Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will bring sub…

See more
Limited-Time Offers:
$164.00
$80.36
(You save: $83.64 )
Selected Finish is
Hurry up! only left
Adding to cart… The item has been added
Product Details
Siena Passage Knob with Wakefield Rose and B60 Single Cylinder Deadbolt

The Siena egg-shaped Passage Knob with Wakefield Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will bring subtle elegance to any room design.

CATEGORY:                    Door Knobs

MANUFACTURER:          Schlage

COLLECTION:                 F Series - Decorative Collection

PRODUCT FAMILY:        Siena

STYLE:                             Egg Shape - Knob.

INTERIOR:                       Easy Installation

EXTERIOR:                      Heavy Duty Residential Grade 1 Security / 1"" Throwbolt

KEYED CYLINDER:         Pin & Tumbler / 5-Pin Key System

FINISH:                             Aged Bronze - 716

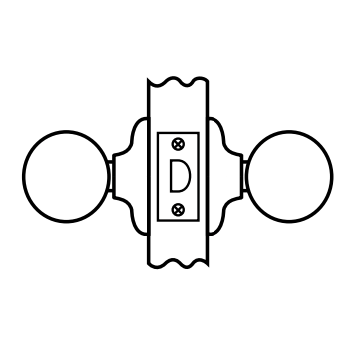

FUNCTION:                      Keyed Entry Set with Passage Knob & Deadbolt / Typically used on front or back doors.
                                          Deadbolt is locked or unlocked by key outside or turnbutton inside.

HANDING:                        This Knob will work on either a right or left hand door application.

WARRANTY:                    Manufacturer - Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:        3.1 lbs.


Please contact us with any questions @ 1-866-755-LOCK (5625). "
Siena Knob with Wakefield Rose

Siena Knob Dimensions

A (Base Dimensions):            2.84" W x 4.00" H x 0.732" Depth
B (Projection From Door):      2-3/8"    (60mm)
C (Knob Diameter):                2-3/4"    (70mm)
Siena Knob Keyed Entry Set

DOOR PREP:                  Deadbolt:  Cross Bore:  2-1/8" or 1-1/2"
                                                           Edge Bore:  1"
                                                           Latch Face:  1" x 2-1/4"
                                         Knob:       Cross Bore:  2-1/8"
                                                           Edge Bore:  1"
                                                           Latch Face:  1" x 2-1/4"

BACKSET:                      Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                         Knob:       Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:       Standard 1-3/8" to 1-3/4"

KEYED CYLINDER:        Deadbolt: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway

KNOB:                              Passage

LATCH FACEPLATES:   1" x 2-1/4" Latch options include:  Round Corner or Drive-In.

STRIKE PLATES:           Deadbolt: 1-1/8" x 2-3/4"
                                         Knob: 1-5/8" x 2-1/4" Round Corner Strike.

LATCH BOLT:                 Deadbolt: Solid Zinc bolt; Full 1" Throw; 7/8" housing
                                         Knob: Plainlatch - 1/2" throw; 7/8" housing

DOOR HANDING:           Will work on either right or left hand doors.

ANSI/BHMA:                   Deadbolt: A156.5-2001 Grade 1
                                         Knob: A156.2, 1996, Grade 2. housing

ADA:                                N/A

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com
