Schlage

Schlage / Plymouth Handleset / Dummy Cylinder

1 review Write a Review
SKU:
f93ply622

Plymouth Dummy Handleset The timeless design of the Plymouth works with any style in any room of your home. CATEGORY:                 â€¦

See more
Limited-Time Offers:
Product Details

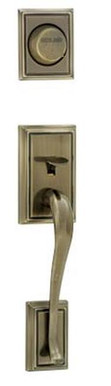

Plymouth Dummy Handleset

The timeless design of the Plymouth works with any style in any room of your home.

CATEGORY:                    Handlesets

MANUFACTURER:         Schlage

COLLECTION:                F Series

PRODUCT FAMILY:       Plymouth

STYLE:                            Two-Piece Decorative Handleset

INTERIOR:                       Select Interior Knob or Lever

EXTERIOR:                     Solid Forged Brass / Concealed Screws

FINISH:                            Bright Chrome - 625

FUNCTION:                     Dummy Cylinder Handleset
                                         Typically used on inactive leaf of double front doors.
                                         Handle and grip act as a pull only - no operation.
                                         This handleset is designed for decorative purposes only.

WARRANTY:                  Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:      5.65 lbs.

Helpful Hint:    Even though this handleset is a dummy function, it still requires two 2-1/8" cross bore holes for mounting.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Plymouth Handleset

Plymouth Handleset Dimensions    Plymouth Throughbolt Dimensions

A (Handle Length):                                                                               12-13/32"  (315mm)
B (Cross Bore Hole Spacing - Center to Center):                                 5-1/2"    (140mm)
C (Projection From Door):                                                                     2-9/32"    (64mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw):        Adjustable 8-1/4" to 9-7/8"
Plymouth Dummy Handleset

DOOR PREP:                  Deadbolt:  Cross Bore:  2-1/8" or 1-1/2"
                                                         Edge Bore:  N/A
                                                         Latch Face:  N/A
                                       Handle:     Cross Bore:  2-1/8"
                                                         Edge Bore:  N/A
                                                         Latch Face:  N/A

BACKSET:                      Deadbolt:  N/A
                                       Handle:      N/A

DOOR THICKNESS:        Standard:   1-5/8" to 2".
                                       Packed with extra mounting screws to accommodate 2" doors.

CYLINDER:                     N/A

LATCH FACEPLATE:     N/A

STRIKE PLATES:            Deadbolt:  N/A
                                       Handle:      N/A

LATCH BOLT:                Deadbolt:  N/A
                                        Handle:     N/A

DOOR HANDING:            Reversible for right or left hand doors.  Specify handing when ordering handed
                                        levers as interior trim for handleset (Interior Knob or Lever Options).

ANSI/BHMA:                   N/A

ADA:                               N/A

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com

Reviews

1 Review

  • Awesome dummy
    5

    Posted by Rachelle on Sep 14, 2021

    Great quality dummy handle. Matches my old brass Schlage so an easy switch out without having to touch up door paint. Built strong and good quality.
