Description

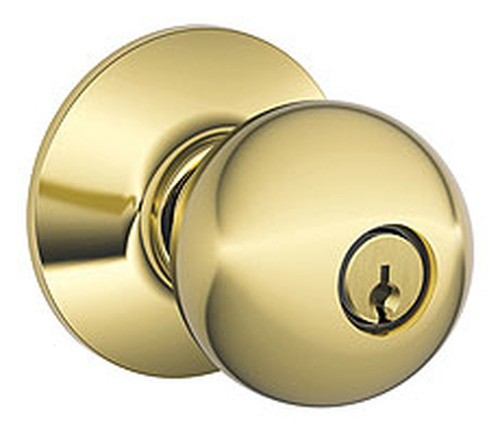

Orbit Storeoom Keyed Entry Knob
The Orbit features a versatile modern design that is appropriate for any contemporary home or room. This product works well for business storerooms or multifamily housing project storerooms. See function below or more information.
CATEGORY: Door Knobs
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Orbit
STYLE: Ball shape
INTERIOR: Easy Installation
EXTERIOR: Heavy Duty Residential Grade 2 Security
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Bright Brass - 605
FUNCTION: Storeroom Keyed Entry Knob / Storeroom Doors / Vestibule
Outside door entry is always locked unless opened with a key.
When key is removed the lock returns to locked position.
Inside the door will open freely at all times to allow exiting and locks upon closing.
HANDING: This knob will work on either a right or left hand door application.
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 1.80 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Orbit features a versatile modern design that is appropriate for any contemporary home or room. This product works well for business storerooms or multifamily housing project storerooms. See function below or more information.
CATEGORY: Door Knobs
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Orbit
STYLE: Ball shape
INTERIOR: Easy Installation
EXTERIOR: Heavy Duty Residential Grade 2 Security
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Bright Brass - 605
FUNCTION: Storeroom Keyed Entry Knob / Storeroom Doors / Vestibule
Outside door entry is always locked unless opened with a key.
When key is removed the lock returns to locked position.
Inside the door will open freely at all times to allow exiting and locks upon closing.
HANDING: This knob will work on either a right or left hand door application.
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 1.80 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Orbit Knob
A (Base Diameter): 2-9/16" (65mm)
B (Projection From Door): 2-7/8" (73mm)
C (Knob Diameter): 2-1/8" (54mm)
A (Base Diameter): 2-9/16" (65mm)
B (Projection From Door): 2-7/8" (73mm)
C (Knob Diameter): 2-1/8" (54mm)
Orbit Storeroom Keyed Entry Knob
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner or drive-in.
STRIKE PLATES: 2-1/4" full lip. Round Corner Strike.
LATCH BOLT: Deadlatch - 1/2" Throw
DOOR HANDING: Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner or drive-in.
STRIKE PLATES: 2-1/4" full lip. Round Corner Strike.
LATCH BOLT: Deadlatch - 1/2" Throw
DOOR HANDING: Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
