Schlage
Schlage / Marin Lever
- SKU:
- j170mar619
Marin Privacy Lever The Modern Straight Design of the Marin Lever is perfect for multi-family applications as well as residential applications where a Modern Commercial or Straight Contemporary look is desired. Complies…
See more
Limited-Time Offers:
$29.00
$13.92
(You save:
$15.08
)
Product Details
Marin Privacy Lever
The Modern Straight Design of the Marin Lever is perfect for multi-family applications as well as residential applications where a Modern Commercial or Straight Contemporary look is desired. Complies with ADA Accessibility Guidelines.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: J Series
PRODUCT FAMILY: Marin
STYLE: Contemporary, decorative lever.
INTERIOR: Easy Installation / Exposed Screws
FINISH: Satin Stainless Steel - 630

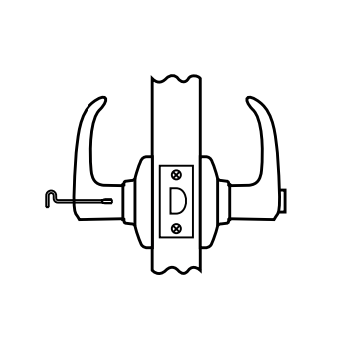

FUNCTION: Privacy / Typically used on bedroom or bathroom doors.
Both levers are locked or unlocked by turn mechanism on the exterior or turning interior turn-button.
HANDING: This lever will work on either a right or left hand door application.
Non-handed product.
WARRANTY: Limited Lifetime Mechanical Warranty and 5-Year Finish Warranty.
SHIPPING WEIGHT: 1.60 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Modern Straight Design of the Marin Lever is perfect for multi-family applications as well as residential applications where a Modern Commercial or Straight Contemporary look is desired. Complies with ADA Accessibility Guidelines.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: J Series
PRODUCT FAMILY: Marin
STYLE: Contemporary, decorative lever.
INTERIOR: Easy Installation / Exposed Screws
FINISH: Satin Stainless Steel - 630
FUNCTION: Privacy / Typically used on bedroom or bathroom doors.
Both levers are locked or unlocked by turn mechanism on the exterior or turning interior turn-button.
HANDING: This lever will work on either a right or left hand door application.
Non-handed product.
WARRANTY: Limited Lifetime Mechanical Warranty and 5-Year Finish Warranty.
SHIPPING WEIGHT: 1.60 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Marin Lever
A (Base Diameter): 2-5/8" (67mm)
B (Lever Length): 3-7/8" (98mm)
C (Projection From Door): 2-7/16"   (62mm)
A (Base Diameter): 2-5/8" (67mm)
B (Lever Length): 3-7/8" (98mm)
C (Projection From Door): 2-7/16"   (62mm)
Marin Privacy Lever
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
CYLINDER: N/A
LATCH FACEPLATE: 1" W x 2-1/4" H Round Corner Faceplate and Drive-In.
STRIKE PLATES: 1-5/8" W x 2-1/4" H, Round Corner Full Lip Strike.
LATCH BOLT: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2011 Commercial Grade 3.
ADA: Complies with ADA Accessibility Guidelines
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
CYLINDER: N/A
LATCH FACEPLATE: 1" W x 2-1/4" H Round Corner Faceplate and Drive-In.
STRIKE PLATES: 1-5/8" W x 2-1/4" H, Round Corner Full Lip Strike.
LATCH BOLT: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2011 Commercial Grade 3.
ADA: Complies with ADA Accessibility Guidelines
Please contact us with any questions @ 1-866-755-LOCK (5625).
