Product Details
Manhattan Dummy Lever

The simple sleek contemporary style of the Manhattan will enhance any room's warmth and beauty.

CATEGORY:                    Door Levers

MANUFACTURER:          Schlage

COLLECTION:                 F Series

PRODUCT FAMILY:        Manhattan

STYLE:                             Modern, decorative lever.

FINISH:                            Bright Chrome - 625

EXTERIOR:                       Easy Installation / Exposed Screws

FUNCTION:                      Half Dummy Trim - Surface Mounted
                                          For doors where only a pull is required. No operation.

HANDING:                        Right Hand - This lever function is handed.
                                          See diagram below.

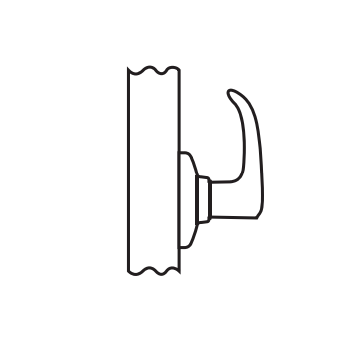

                                         Door Handing Diagram

                                          If you need a Left Hand Dummy Lever, click on "Coordinates" tab above to see all related functions.

WARRANTY:                    Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:       .45 lbs.

Helpful Hint:    This is one single lever that screws to the face of the door with two wood screws included for installation.
  • If you want a dummy lever on both sides of the door, you will need to order two of this item.  For handed dummy levers order 1 Right Hand and 1 Left Hand.

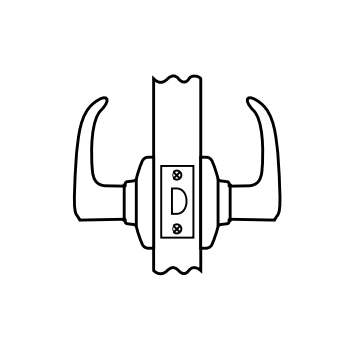

  • If your door has been pre-drilled with an 1-5/8" or 2-1/8" crossbore hole (standard hole size for functioning door hardware), a dummy function will not work. You can use a passage function without the latch. If you use a passage function, the hardware will not be rigid; it will rotate like a normal passage function.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Manhattan Lever

Manhattan Lever Dimensions

A (Base Diameter):                 2-3/4"     (69mm)
B (Lever Length):                    4-9/16"   (138mm)
C (Projection From Door):       2-7/16"  (62mm)
Manhattan Dummy Lever

DOOR PREP:                  No holes in the door required for mounting.
                                         This lever function screws to the face of the door (two wood screws provided).

BACKSET:                       N/A

DOOR THICKNESS:        N/A

CYLINDER:                      N/A

LATCH FACEPLATE:      N/A

STRIKE PLATES:            N/A

LATCH BOLT:                 N/A

DOOR HANDING:            This function is handed. This is a right handed lever and is not reversible.
                                          See diagram below.


                                           Door Handing Diagram


ANSI/BHMA:                    ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.

ADA:                                Complies with ADA Accessibility Guidelines

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com
