Description

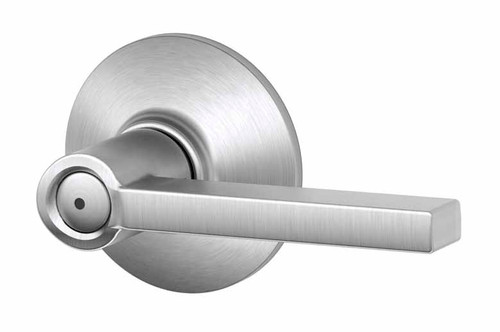

Latitude Privacy Lever
The Modern Design of the Latitude Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Latitude
STYLE: Contemporary, decorative lever.
INTERIOR: Easy Installation / Exposed Screws
FINISH: Satin Chrome - 626
FUNCTION: Privacy / Typically used on bedroom or bathroom doors.
Both levers are locked or unlocked by emergency key outside or pushbutton inside.
HANDING: This lever will work on either a right or left hand door application.
Non-handed product.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 2.10 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Modern Design of the Latitude Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Latitude
STYLE: Contemporary, decorative lever.
INTERIOR: Easy Installation / Exposed Screws
FINISH: Satin Chrome - 626
FUNCTION: Privacy / Typically used on bedroom or bathroom doors.
Both levers are locked or unlocked by emergency key outside or pushbutton inside.
HANDING: This lever will work on either a right or left hand door application.
Non-handed product.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 2.10 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Latitude Lever
A (Base Diameter): 2-3/4" (70mm)
B (Lever Length): 4" (102mm)
C (Projection From Door): 2-1/4" (57mm)
A (Base Diameter): 2-3/4" (70mm)
B (Lever Length): 4" (102mm)
C (Projection From Door): 2-1/4" (57mm)
Latitude Privacy Lever
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
CYLINDER: N/A
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner or drive-in.
STRIKE PLATES: 1-5/8" x 2-1/4" Round Corner Strike.
LATCH BOLT: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
CYLINDER: N/A
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner or drive-in.
STRIKE PLATES: 1-5/8" x 2-1/4" Round Corner Strike.
LATCH BOLT: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
