Description

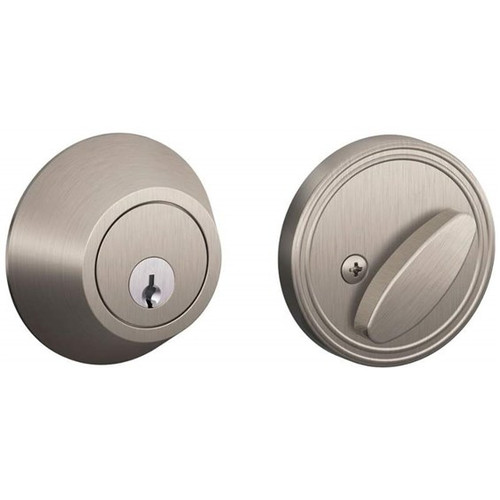

JD60 Series Single Cylinder Deadbolt
The Schlage JD60 Single Cylinder Deadbolt is a grade 3 security deadbolt. Features include: easy installation, 1" throw deadbolt.
CATEGORY: Deadbolts
MANUFACTURER: Schlage
PRODUCT FAMILY: J Series
STYLE: Single Cylinder Grade 3 Security Deadbolt
INTERIOR: Thumbturn on interior.
EXTERIOR: Grade 3 Security / 1" Throwbolt.
KEYED CYLINDER: Pin & Tumbler / 5-Pin, C Keyway
FINISH: Satin Nickel - 619
FUNCTION: Single Cylinder Deadbolt / Typically used on front or back doors.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Limited Lifetime Mechanical Warranty and 5-Year Finish Warranty.
SHIPPING WEIGHT: 2.20 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Schlage JD60 Single Cylinder Deadbolt is a grade 3 security deadbolt. Features include: easy installation, 1" throw deadbolt.
CATEGORY: Deadbolts
MANUFACTURER: Schlage
PRODUCT FAMILY: J Series
STYLE: Single Cylinder Grade 3 Security Deadbolt
INTERIOR: Thumbturn on interior.
EXTERIOR: Grade 3 Security / 1" Throwbolt.
KEYED CYLINDER: Pin & Tumbler / 5-Pin, C Keyway
FINISH: Satin Nickel - 619
FUNCTION: Single Cylinder Deadbolt / Typically used on front or back doors.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Limited Lifetime Mechanical Warranty and 5-Year Finish Warranty.
SHIPPING WEIGHT: 2.20 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
JD60 Deadbolt
Exterior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 7/8"
Interior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1-1/16"
C (Thumbturn Length): 1-3/4"
D (Thumbturn Base Plate Thickness): 5/16"
Exterior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 7/8"
Interior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1-1/16"
C (Thumbturn Length): 1-3/4"
D (Thumbturn Base Plate Thickness): 5/16"
JD60 Series Single Cylinder Deadbolt
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Triple Option include: 1/4" Round Corner, Square Corner, and Drive-In.
STRIKE PLATES: 1-1/8" x 2-1/4" Round Corner Deadbolt Strike and Round Corner Full Lip Strike.
LATCH BOLT: Hardened Steel Core; Full 1" Throw; 1" housing diameter.
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: A156.36, 2010, Grade 3.
ADA: ADA Compliant Thumbturn.
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Triple Option include: 1/4" Round Corner, Square Corner, and Drive-In.
STRIKE PLATES: 1-1/8" x 2-1/4" Round Corner Deadbolt Strike and Round Corner Full Lip Strike.
LATCH BOLT: Hardened Steel Core; Full 1" Throw; 1" housing diameter.
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: A156.36, 2010, Grade 3.
ADA: ADA Compliant Thumbturn.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Shipping
UPS Ground Shipping Map
DoorLocksDirect.com is located in Tomball, TX. Most orders ship complete within 24 hours. You will get an e-mail once your order has shipped with the UPS tracking #. UPS does not count the day the order is picked up. The number of days in transit start the following day. Weekends or holidays are not counted as transit days.
Calculate Shipping Charges:
If your order is over $299 (before taxes and shipping charges), the shipping will automatically be removed during checkout (No Coupon Code is required) for Ground shipping charges in the 48 continental states (not valid in Alaska or Hawaii).
DoorLocksDirect.com is located in Tomball, TX. Most orders ship complete within 24 hours. You will get an e-mail once your order has shipped with the UPS tracking #. UPS does not count the day the order is picked up. The number of days in transit start the following day. Weekends or holidays are not counted as transit days.
Calculate Shipping Charges:
- Load items in shopping cart.
- Click checkout button.
- Enter shipping address information.
- UPS shipping options will show cost.
- You can click "Cancel" at any time and keep shopping.
If your order is over $299 (before taxes and shipping charges), the shipping will automatically be removed during checkout (No Coupon Code is required) for Ground shipping charges in the 48 continental states (not valid in Alaska or Hawaii).
Reviews
2 Reviews
-
Great quality, fast service
I own several rental properties and find Schlage to be a high quality replacement knob for turnovers. They are durable and look great. Door locks direct also makes it simple to order exactly what is needed while re-keying everything to be similar. Easy process and more convenient than the typical home stores which don't always sell locks in the combinations needed for all door/lock styles.
-
Easy to Install as a Replacement
I ordered these Schlagg JD60 deadbolts to replace the deadbolts on the house I bought. They were very easy to install, just 2 screws and 2 bolts. They turn nicely with either the key or handle. They seem much sturdier than the old ones I replaced.
