Schlage

Schlage / Corona Knob

1 review Write a Review
SKU:
j170cna716

Corona Passage Knob The Corona works with any style in any room of your home. CATEGORY:                   Door Knobs MANUF…

See more
Limited-Time Offers:
$18.00
$9.00
(You save: $9.00 )
Selected Finish is
Hurry up! only left
Adding to cart… The item has been added
Product Details
Corona Passage Knob

The Corona works with any style in any room of your home.

CATEGORY:                   Door Knobs

MANUFACTURER:         Schlage

COLLECTION:                J Series

PRODUCT FAMILY:       Corona

STYLE:                            Ball Shape.

INTERIOR:                       Easy Installation

FINISH:                            Satin Stainless Steel - 630

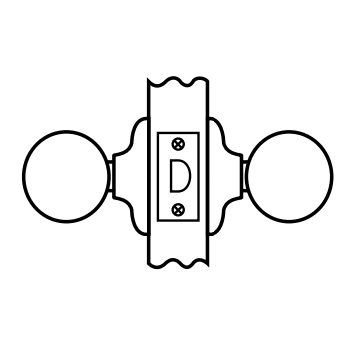

FUNCTION:                     Passage / Typically used on hall or closet doors.
                                         Both levers always free (non-locking).

HANDING:                       This knob will work on either a right or left hand door application.

WARRANTY:                   Limited Lifetime Mechanical Warranty and 5-Year Finish Warranty.

SHIPPING WEIGHT:       1.04 lbs.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Corona Knob

Corona Knob Dimensions

A (Base Diameter):               2-5/8"  (67mm)
B (Projection From Door):     2-7/15"  (63mm)
C (Knob Diameter):               2"    (51mm)
Corona Passage Knob

DOOR PREP:                  Cross Bore: 2-1/8"
                                         Edge Bore: 1"
                                         Latch Face: 1" x 2-1/4"

BACKSET:                      Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:       Standard 1-3/8" to 1-3/4"

CYLINDER:                      N/A

LATCH FACEPLATE:     1" W x 2-1/4" H Round Corner Faceplate and Drive-In.

STRIKE PLATES:            1-5/8" W x 2-1/4" H, Round Corner Full Lip Strike.

LATCH BOLT:                  Plainlatch - 1/2" throw; 7/8" housing

DOOR HANDING:            Will work on either right or left hand doors.

ANSI/BHMA:                    A156.2, 2011, Grade 3.

ADA:                                 N/A

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com
