Description

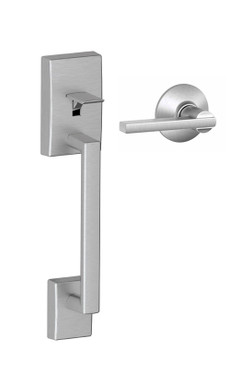

Century Handleset Handle
Century's Square Design lends itself to Contemporary or Modern Settings. The handle may be used with most any Schlage deadbolt if there are two bore holes in the door (one for the Handle and one for the deadbolt). Standard Deadbolts or Electronic Deadbolts for Keyless Entry are available.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Century
STYLE: One-Piece Decorative Handleset Handle
INTERIOR: Shown with Latitude Lever / Select Interior Knob or Lever
FINISH: Satin Brass - 608
FUNCTION: Decorative Handleset Handle / Typically used on front doors.
The latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 5.60 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Century's Square Design lends itself to Contemporary or Modern Settings. The handle may be used with most any Schlage deadbolt if there are two bore holes in the door (one for the Handle and one for the deadbolt). Standard Deadbolts or Electronic Deadbolts for Keyless Entry are available.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Century
STYLE: One-Piece Decorative Handleset Handle
INTERIOR: Shown with Latitude Lever / Select Interior Knob or Lever
FINISH: Satin Brass - 608
FUNCTION: Decorative Handleset Handle / Typically used on front doors.
The latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 5.60 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Century Handleset
See "A" & "C" & "D" Dimensions for Handle
A (Handle Length): 12-1/8" (304mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm)
C (Projection From Door): 2-1/4" (73mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable 8-1/4" to 9-7/8"
See "A" & "C" & "D" Dimensions for Handle
A (Handle Length): 12-1/8" (304mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm)
C (Projection From Door): 2-1/4" (73mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable 8-1/4" to 9-7/8"
Century Handleset Handle
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-5/8" to 2".
Packed with extra mounting screws to accommodate 2" doors.
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: Round Corner, Square Corner or Drive-In.
STRIKE PLATE: 2-1/4" full lip. Strike options include: Round or Square Corner.
LATCH BOLT: Plainlatch - 1/2" throw
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: N/A
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-5/8" to 2".
Packed with extra mounting screws to accommodate 2" doors.
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: Round Corner, Square Corner or Drive-In.
STRIKE PLATE: 2-1/4" full lip. Strike options include: Round or Square Corner.
LATCH BOLT: Plainlatch - 1/2" throw
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: N/A
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
