Description

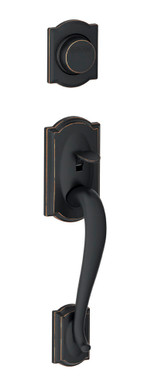

Camelot Dummy Handleset
The distinctive design of the Camelot combines architectural inspired arches with graceful curves. The two-piece design offers flexibility for doors with non-standard hole locations while providing a classic appearance for smaller entranceways.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Camelot
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Solid Forged Brass / Concealed Screws
FINISH: Satin Brass - 608
FUNCTION: Dummy Cylinder Handleset
Typically used on inactive leaf of double front doors.
Handle and grip act as a pull only - no operation.
This handleset is designed for decorative purposes only.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 5.65 lbs.
Helpful Hint: Even though this handleset is a dummy function, it still requires two 2-1/8" cross bore holes for mounting.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The distinctive design of the Camelot combines architectural inspired arches with graceful curves. The two-piece design offers flexibility for doors with non-standard hole locations while providing a classic appearance for smaller entranceways.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Camelot
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Solid Forged Brass / Concealed Screws
FINISH: Satin Brass - 608
FUNCTION: Dummy Cylinder Handleset
Typically used on inactive leaf of double front doors.
Handle and grip act as a pull only - no operation.
This handleset is designed for decorative purposes only.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 5.65 lbs.
Helpful Hint: Even though this handleset is a dummy function, it still requires two 2-1/8" cross bore holes for mounting.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Camelot Handleset
A (Handle Length): 12-7/8" (327mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm)
C (Projection From Door): 2-7/8" (73mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable 8-1/4" to 9-7/8"
A (Handle Length): 12-7/8" (327mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm)
C (Projection From Door): 2-7/8" (73mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable 8-1/4" to 9-7/8"
Camelot Dummy Handleset
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: N/A
Latch Face: N/A
Handle: Cross Bore: 2-1/8"
Edge Bore: N/A
Latch Face: N/A
BACKSET: Deadbolt: N/A
Handle: N/A
DOOR THICKNESS: Standard: 1-5/8" to 2".
Packed with extra mounting screws to accommodate 2" doors.
CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: Deadbolt: N/A
Handle: N/A
LATCH BOLT: Deadbolt: N/A
Handle: N/A
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: N/A
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: N/A
Latch Face: N/A
Handle: Cross Bore: 2-1/8"
Edge Bore: N/A
Latch Face: N/A
BACKSET: Deadbolt: N/A
Handle: N/A
DOOR THICKNESS: Standard: 1-5/8" to 2".
Packed with extra mounting screws to accommodate 2" doors.
CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: Deadbolt: N/A
Handle: N/A
LATCH BOLT: Deadbolt: N/A
Handle: N/A
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: N/A
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
