Schlage
Schlage / Broadway Lever with Collins Rose
- SKU:
- f170brw622col
Broadway Dummy Lever with Collins Rose The Modern Design of the Broadway Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired. CATEGORY: …
See more
Limited-Time Offers:
$59.00
$28.32
(You save:
$30.68
)
Product Details
DOOR PREP: No holes in the door required for mounting.
This lever function screws to the face of the door (two wood screws provided).
BACKSET: N/A
DOOR THICKNESS: N/A
CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: N/A
LATCH BOLT: N/A
DOOR HANDING: This lever will work on either a right or left hand door application.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
ADA: Complies with ADA Accessibility Guidelines
Please contact us with any questions @ 1-866-755-LOCK (5625).
Broadway Dummy Lever with Collins Rose
The Modern Design of the Broadway Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Broadway
STYLE: Contemporary, decorative lever.
FINISH: Satin Nickel - 619
EXTERIOR: Easy Installation / Exposed Screws

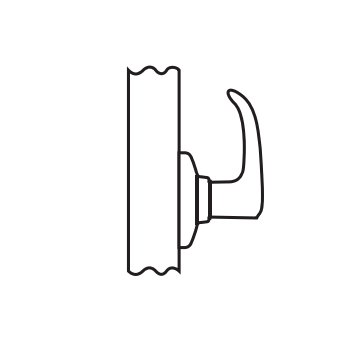

FUNCTION: Half Dummy Trim - Surface Mounted
For doors where only a pull is required. No operation.
HANDING: This lever will work on either a right or left hand door application.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: .8 pounds
Helpful Hint: This is one single lever that screws to the face of the door with two wood screws included for installation.
The Modern Design of the Broadway Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Broadway
STYLE: Contemporary, decorative lever.
FINISH: Satin Nickel - 619
EXTERIOR: Easy Installation / Exposed Screws
FUNCTION: Half Dummy Trim - Surface Mounted
For doors where only a pull is required. No operation.
HANDING: This lever will work on either a right or left hand door application.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: .8 pounds
Helpful Hint: This is one single lever that screws to the face of the door with two wood screws included for installation.
- If you want a dummy lever on both sides of the door, you will need to order two of this item.
- If your door has been pre-drilled with an 1-5/8" or 2-1/8" crossbore hole (standard hole size for functioning door hardware), a dummy function will not work. You can use a passage function without the latch. If you use a passage function, the hardware will not be rigid; it will rotate like a normal passage function.
Broadway Lever with Collins Rose
A (Base Dimensions): 2-5/8" W x 2-5/8" H
B (Lever Length): 4" (102mm)
C (Projection From Door): 2-1/4" (57mm)
A (Base Dimensions): 2-5/8" W x 2-5/8" H
B (Lever Length): 4" (102mm)
C (Projection From Door): 2-1/4" (57mm)
DOOR PREP: No holes in the door required for mounting.
This lever function screws to the face of the door (two wood screws provided).
BACKSET: N/A
DOOR THICKNESS: N/A
CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: N/A
LATCH BOLT: N/A
DOOR HANDING: This lever will work on either a right or left hand door application.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
ADA: Complies with ADA Accessibility Guidelines
Please contact us with any questions @ 1-866-755-LOCK (5625).
