Schlage

Schlage / Broadway Lever

2 reviews Write a Review
SKU:
f170brw622

Broadway Keyed Lever The Modern Design of the Broadway Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired. CATEGORY:     &…

See more
Limited-Time Offers:
Product Details
Broadway Keyed Lever

The Modern Design of the Broadway Lever is perfect for multi-family applications as well as applications where a Commercial or Contemporary look is desired.

CATEGORY:                    Door Levers

MANUFACTURER:          Schlage

COLLECTION:                 F Series

PRODUCT FAMILY:        Broadway

STYLE:                             Contemporary, decorative lever.

INTERIOR:                       Easy Installation / Exposed Screws

EXTERIOR:                      Heavy Duty Residential Grade 2 Security

KEYED CYLINDER:         Pin & Tumbler / 5-Pin Key System

FINISH:                             Aged Bronze - 716

FUNCTION:                      Keyed Entry Lever / Typically used on front or back doors.
                                          Both levers are locked or unlocked by key outside or turnbutton inside.

HANDING:                        This lever will work on either a right or left hand door application.
                                          Reversible lever chasis (non-handed product).

WARRANTY:                    Manufacturer - Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:        2.20 lbs.

Helpful Hint:
  • This lever function comes standard with an interior emergency exit feature (Model # F51A).  From the interior, if the lever is in the locked position, you do not have to unlock the lock prior to rotating the lever to exit.  Once the lever is rotated to exit the lock automatically unlocks.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Broadway Lever

Broadway Lever Dimensions

A (Base Diameter):                 2-11/16"     (68mm)
B (Lever Length):                   4"   (102mm)
C (Projection From Door):     2-3/8"  (60mm)

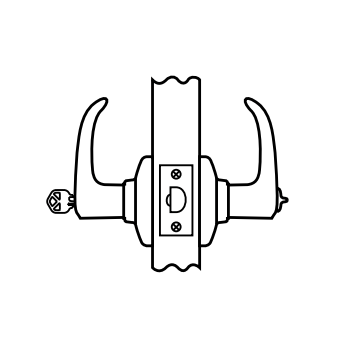

Broadway Keyed Entry Lever

DOOR PREP:                 Cross Bore: 2-1/8"
                                        Edge Bore: 1"
                                        Latch Face: 1" x 2-1/4"

BACKSET:                     Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:      Standard 1-3/8" to 1-3/4"

KEYED CYLINDER:       Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway

LATCH FACEPLATE:    1" x 2-1/4" Latch options include: round corner or drive-in.

STRIKE PLATES:           2-1/4" full lip. Round Corner Strike.

LATCH BOLT:                Deadlatch - 1/2" Throw

DOOR HANDING:           Reversible Lever Chasis.  Will work on either right or left hand doors.

ANSI/BHMA:                   ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.

ADA:                                N/A

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com

Reviews

2 Reviews

  • Door handle design
    5

    Posted by Frederick Anderson on Mar 1, 2023

    I really like the simple smooth design of the Broadway levers and schlage has always made a quality product so the combination meets my needs quite well

  • Schlage Broadway Lever
    5

    Posted by Amy Walla on Dec 31, 2020

    Easy to install and looks great.

Your Bonus Benefit

Free Standard Keying

Available on all keyed locksets we sell - choose keyed alike or keyed different - or any combination that fits your needs - at no extra cost.
