Description

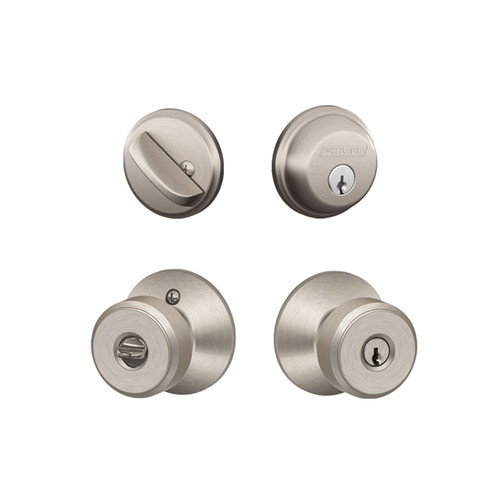

Bowery Keyed Knob F51A with B60 Deadbolt Combo Pack
The modern design of the Bowery works with any contemporary style in any room of your home.
The Schlage B60 Single Cylinder Deadbolt is a premium security - Grade 1 deadbolt. Features include: easy installation, 1" throw deadbolt with a concealed hardened steel roller to prevent cutting or sawing the bolt. This deadbolt also comes standard with the door frame reinforcer, which significantly strengthens a wood jamb against kick-in attack and greatly increases the security effectiveness of the lock.
CATEGORY: Door Knobs
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Bowery
STYLE: Modern Contemporary Knob.
INTERIOR: Easy Installation
EXTERIOR: Heavy Duty Residential Grade 2 Security
DEADBOLT: B60 - Heavy Duty Residential Grade 1 Security / 1" Solid Zinc Throwbolt
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Keyed Entry Knob / Typically used on front or back doors.
Both knobs are locked or unlocked by key outside or turnbutton inside.
HANDING: This knob will work on either a right or left hand door application.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 3.6 lbs.
Helpful Hint:
The modern design of the Bowery works with any contemporary style in any room of your home.
The Schlage B60 Single Cylinder Deadbolt is a premium security - Grade 1 deadbolt. Features include: easy installation, 1" throw deadbolt with a concealed hardened steel roller to prevent cutting or sawing the bolt. This deadbolt also comes standard with the door frame reinforcer, which significantly strengthens a wood jamb against kick-in attack and greatly increases the security effectiveness of the lock.
CATEGORY: Door Knobs
MANUFACTURER: Schlage
COLLECTION: F Series
PRODUCT FAMILY: Bowery
STYLE: Modern Contemporary Knob.
INTERIOR: Easy Installation
EXTERIOR: Heavy Duty Residential Grade 2 Security
DEADBOLT: B60 - Heavy Duty Residential Grade 1 Security / 1" Solid Zinc Throwbolt
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Keyed Entry Knob / Typically used on front or back doors.
Both knobs are locked or unlocked by key outside or turnbutton inside.
HANDING: This knob will work on either a right or left hand door application.
WARRANTY: Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 3.6 lbs.
Helpful Hint:
- This Knob function comes standard with an interior emergency exit feature (Model # F51A). From the interior, if the knob is in the locked position, you do not have to unlock the lock prior to rotating the knob to exit. The lock automatically unlocks when the knob is turned.
Bowery Knob
A (Base Diameter): 2-9/16" (65mm)
B (Projection From Door): 3"
C (Knob Diameter): 2-3/32" (54mm)
B60 Deadbolt
Exterior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 7/8"
Interior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1-1/4"
C (Thumbturn Length): 1-7/8"
D (Thumbturn Base Plate Thickness): 5/16"
A (Base Diameter): 2-9/16" (65mm)
B (Projection From Door): 3"
C (Knob Diameter): 2-3/32" (54mm)
B60 Deadbolt
Exterior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 7/8"
Interior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1-1/4"
C (Thumbturn Length): 1-7/8"
D (Thumbturn Base Plate Thickness): 5/16"
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner or drive-in.
STRIKE PLATES: Knob: 2-1/4" full lip Round Corner Strike.
STRIKE PLATES: Deadbolt: 1-1/8" x 2-3/4"
LATCH BOLT: Knob: Deadlatch - 1/2" Throw.
LATCH BOLT: Deadbolt: Solid Zinc Bolt; Full 1" Throw; 7/8" Housing.
DOOR HANDING: Will work on either right or left hand doors.
ANSI/BHMA: Knob: Grade 2 A156.2
ANSI/BHMA: Deadbolt: Grade 1 A156.5-2001
ADA: N/A
