Schlage

Schlage / Birmingham Lever

1 review Write a Review
SKU:
f170bir619

Birmingham Dummy Lever The Traditional Design of the Birmingham Lever is perfect for multi-family applications as well as single family home applications. CATEGORY:         â€¦

See more
Limited-Time Offers:
Product Details
Birmingham Dummy Lever

The Traditional Design of the Birmingham Lever is perfect for multi-family applications as well as single family home applications.

CATEGORY:                  Door Levers

MANUFACTURER:        Schlage

COLLECTION:                F Series

PRODUCT FAMILY:       Birmingham

STYLE:                           Traditional, decorative lever.

FINISH:                           Aged Bronze - 716

EXTERIOR:                      Easy Installation / Exposed Screws

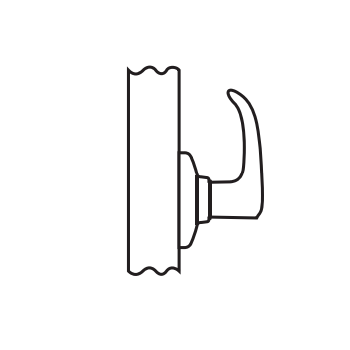

FUNCTION:                    Half Dummy Trim - Surface Mounted
                                        For doors where only a pull is required. No operation.

HANDING:                      This lever will work on either a right or left hand door application.

WARRANTY:                  Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:      .45 pounds

Helpful Hint:    This is one single lever that screws to the face of the door with two wood screws included for installation.
  • If you want a dummy lever on both sides of the door, you will need to order two of this item.

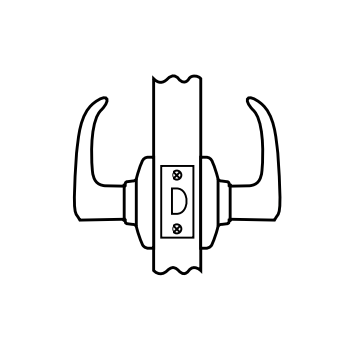

  • If your door has been pre-drilled with an 1-5/8" or 2-1/8" crossbore hole (standard hole size for functioning door hardware), a dummy function will not work. You can use a passage function without the latch. If you use a passage function, the hardware will not be rigid; it will rotate like a normal passage function.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Birmingham Lever

Birmingham Lever Dimensions

A (Base Diameter):                 2-3/4"     (70mm)
B (Lever Length):                   4"   (102mm)
C (Projection From Door):     2-1/4"  (57mm)
Birmingham Dummy Lever

DOOR PREP:                  No holes in the door required for mounting.
                                         This lever function screws to the face of the door (two wood screws provided).

BACKSET:                       N/A

DOOR THICKNESS:        N/A

CYLINDER:                      N/A

LATCH FACEPLATE:      N/A

STRIKE PLATES:            N/A

LATCH BOLT:                 N/A

DOOR HANDING:            This lever will work on either a right or left hand door application.

ANSI/BHMA:                    ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.

ADA:                                Complies with ADA Accessibility Guidelines

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com

Reviews

1 Review

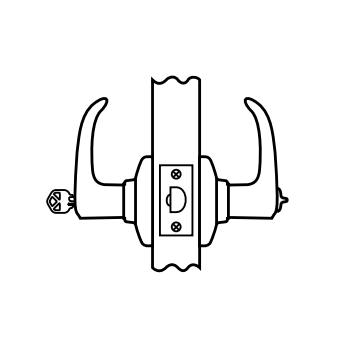

  • Schlage / Birmingham Lever / Keyed Entry / Bright Chrome / F51ABIR 625
    5

    Posted by Bob on Feb 5, 2024

    Replacing 4 year old unit used constantly all day long. Keyed alike to other locks. Arrived quickly and installed in 10 minutes. Great handle and lock.
