Schlage
Schlage / BE469 Camelot Connect Deadbolt with Accent Passage Lever
No reviews yet
Write a Review
Write a Review
Schlage
Schlage / BE469 Camelot Connect Deadbolt with Accent Passage Lever
- SKU:
- fbe469cam-acc622
BE469 Camelot Connect Deadbolt with Accent Passage Lever The classic design of the Accent Lever is perfect for multi-family applications as well as applications where a classic look is desired. Schlage Touchscreen Deadbo…
See more
Limited-Time Offers:
Log in to see Price or
Call Toll Free
1-866-755-5625
Due to Allegion PLC's new Minimum Advertised Price (MAP) policy, customers can only see the pricing or purchase Schlage Residential Items when they log-in to an existing member account.
If you do not have a member account, you can create one here: Create Account
Product Details
DOOR PREP: Cross Bore: Lever 2-1/8"
BE469 Camelot Connect Deadbolt with Accent Passage Lever
The classic design of the Accent Lever is perfect for multi-family applications as well as applications where a classic look is desired.
Schlage Touchscreen Deadbolts bring professional grade security with the convenience of keyless access to the home. The innovative touchscreen feature allows the user to lock and leave without a key. Ideal for front, back and side entry doors where deadbolts are required. Some additional security and quality features include:
The classic design of the Accent Lever is perfect for multi-family applications as well as applications where a classic look is desired.
Schlage Touchscreen Deadbolts bring professional grade security with the convenience of keyless access to the home. The innovative touchscreen feature allows the user to lock and leave without a key. Ideal for front, back and side entry doors where deadbolts are required. Some additional security and quality features include:
- ANSI Grade AAA Highest Residential Security, ANSI/BHMA Commercial Grade 1.
- Anti-pick shield protects against lock tampering
- Durable Resistive Touchscreen with matte finish to protect against finger prints and smudges.
- Strong motorized bolt automatically locks and unlocks when a user code is entered
- Warning beep alerts you when the deadbolt is not fully extended
- Build-in Alarm Technology senses movement of the door and alerts homeowners with an audible alert
- Select between three alerts- activity, tamper or forced entry alert- and customized to meet fit your security needs
- With Nexia™ Home Intelligence, lock or unlock your door from anywhere with your cell phone
- With Nexia™ Home Intelligence, schedule lock codes to be active only on certain days at specific times
- Holds up to 30 (4 to 8 digit) user codes
- Preset with 2 user codes
- Lock-and-leave offers easy one-button locking upon exiting the house
- Auto-handing intuitively detects the direction the bolt needs to be thrown during installation
- Easy installation with just a screwdriver - No wiring required - Operates on 4 AA batteries included with product
CATEGORY: Electronic Combo Packs
MANUFACTURER: Schlage
COLLECTION: BE Series
PRODUCT FAMILY: Camelot / Accent
STYLE: Wave, decorative lever
INTERIOR: Easy Installation / Exposed Screws
PASSAGE: Passage Grade 2 certification
DEADBOLT: ANSI Grade AAA Highest Residential Security, ANSI/BHMA Commercial Grade 1.
INTERIOR: Easy Installation / Exposed Screws
PASSAGE: Passage Grade 2 certification
DEADBOLT: ANSI Grade AAA Highest Residential Security, ANSI/BHMA Commercial Grade 1.
BATTERIES: 4 - AA Batteries
USER CODES: 2 pre-set unique 4-digit access codes, storage of up to 30 Access codes
COMUNICATIONS: 900 MHz (Z-Wave RF)
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Bright Brass - 605
FUNCTION: Electronic Deadbolt / Passage Lever (non-locking) below. Typically used on front or back doors.
Deadbolt is locked or unlocked by key or keypad outside or turn button inside.
HANDING: This set will work on either a right or left hand door application.
Reversible lever chassis (non-handed product).
WARRANTY: Manufacturer 3 year electronics / Limited lifetime mechanical and finish
SHIPPING WEIGHT: 6 lbs.
Helpful Hint:
FINISH: Bright Brass - 605
FUNCTION: Electronic Deadbolt / Passage Lever (non-locking) below. Typically used on front or back doors.
Deadbolt is locked or unlocked by key or keypad outside or turn button inside.
HANDING: This set will work on either a right or left hand door application.
Reversible lever chassis (non-handed product).
WARRANTY: Manufacturer 3 year electronics / Limited lifetime mechanical and finish
SHIPPING WEIGHT: 6 lbs.
Helpful Hint:
- This unit requires the same door preparation as a standard keyed entry.
- There is no hard wiring necessary as this unit operates on 4 AA batteries.

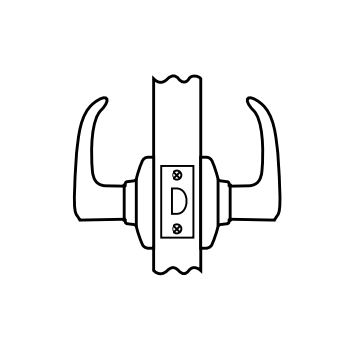

Accent Lever
A (Base Diameter): 2-3/4"
B (Lever Length): 4-5/32"
C (Projection From Door): 2-23/32"
A (Base Diameter): 2-3/4"
B (Lever Length): 4-5/32"
C (Projection From Door): 2-23/32"
BE469NX Camelot Connect Touchscreen Deadbolt
Outer Trim:
A - (Overall Height): 4-3/4"
B - (Overall Width): 3"
C - (Projection From Door): 1"
Inner Trim:
A - (Overall Height): 8"
B - (Overall Width): 3"
C - (Projection From Door): 2"
Outer Trim:
A - (Overall Height): 4-3/4"
B - (Overall Width): 3"
C - (Projection From Door): 1"
Inner Trim:
A - (Overall Height): 8"
B - (Overall Width): 3"
C - (Projection From Door): 2"
DOOR PREP: Cross Bore: Lever 2-1/8"
Cross Bore: Deadbolt 1-1/2" or 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner, square corner or drive-in.
STRIKE PLATES: Lever: 2-1/4" full lip Round Corner Strike.
STRIKE PLATES: Deadbolt: Round Corner 1-1/8" x 2-3/4"
LATCH BOLT: Lever: Plainlatch - 1/2" Throw.
LATCH BOLT: Deadbolt: Solid Zinc Bolt; Full 1" Throw.
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: Lever: Grade 2 A156.2
ANSI/BHMA: ANSI Grade AAA Highest Residential Security, ANSI/BHMA Commercial Grade 1.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner, square corner or drive-in.
STRIKE PLATES: Lever: 2-1/4" full lip Round Corner Strike.
STRIKE PLATES: Deadbolt: Round Corner 1-1/8" x 2-3/4"
LATCH BOLT: Lever: Plainlatch - 1/2" Throw.
LATCH BOLT: Deadbolt: Solid Zinc Bolt; Full 1" Throw.
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: Lever: Grade 2 A156.2
ANSI/BHMA: ANSI Grade AAA Highest Residential Security, ANSI/BHMA Commercial Grade 1.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
