Description

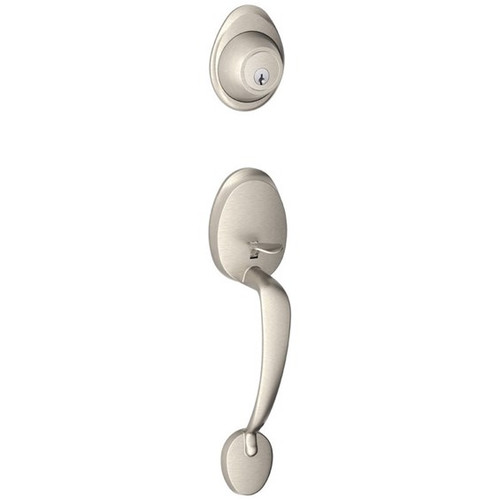

Barcelona Single Cylinder Handleset
The design of the Barcelona works with many house styles in residential settings as well as multifamily housing projects.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: J Series
PRODUCT FAMILY: Barcelona
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Residential Grade 3 Security / 1" Throwbolt
Solid Forged Brass
KEYED CYLINDER: Standard: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Limited Lifetime Mechanical and Limited 5 Year Finish Warranty.
SHIPPING WEIGHT: 5.20 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The design of the Barcelona works with many house styles in residential settings as well as multifamily housing projects.
CATEGORY: Handlesets
MANUFACTURER: Schlage
COLLECTION: J Series
PRODUCT FAMILY: Barcelona
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Residential Grade 3 Security / 1" Throwbolt
Solid Forged Brass
KEYED CYLINDER: Standard: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Limited Lifetime Mechanical and Limited 5 Year Finish Warranty.
SHIPPING WEIGHT: 5.20 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Barcelona Handleset
A (Handle Length): 11-7/8"" (302mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm) Standard
C (Projection From Door): 2-7/16" (62mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-1/2"
A (Handle Length): 11-7/8"" (302mm)
B (Cross Bore Hole Spacing - Center to Center): 5-1/2" (140mm) Standard
C (Projection From Door): 2-7/16" (62mm)
D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-1/2"
Barcelona Single Cylinder Handleset
DOOR PREP: Deadbolt: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-3/8" - 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATES: Triple Option 1" x 2-1/4", Square Corner, 1/4" Round Corner face plates and Drive-In.
STRIKE PLATES: Deadbolt: 1" W x 2-1/4" H Round Corner and 1-5/8" W x 2-1/4" H full lip.
Handle: 1-5/8" W x 2-1/4" H full lip.
LATCH BOLT: Deadbolt: Full 1" Throw; 7/8" Housing
Handle: Plainlatch - 1/2" throw
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: A156.36, 2010, Grade 3.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Deadbolt: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-3/8" - 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATES: Triple Option 1" x 2-1/4", Square Corner, 1/4" Round Corner face plates and Drive-In.
STRIKE PLATES: Deadbolt: 1" W x 2-1/4" H Round Corner and 1-5/8" W x 2-1/4" H full lip.
Handle: 1-5/8" W x 2-1/4" H full lip.
LATCH BOLT: Deadbolt: Full 1" Throw; 7/8" Housing
Handle: Plainlatch - 1/2" throw
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: A156.36, 2010, Grade 3.
ADA: N/A
Please contact us with any questions @ 1-866-755-LOCK (5625).
