Coordinates
Description

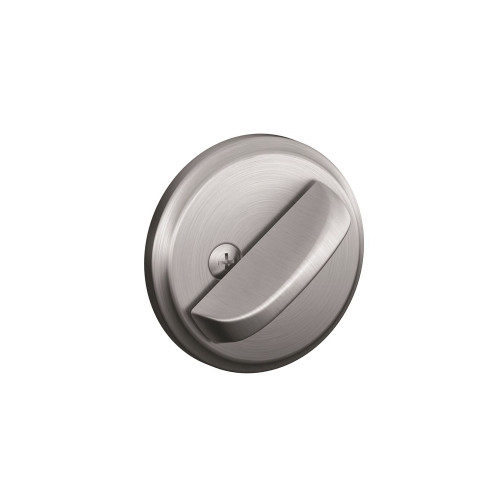

The Schlage B80 Deadbolt is a one-sided standard duty deadbolt. It is specifically designed for rental property and to protect tenants from someone gaining access with a key. If the tenant is home and has this deadbolt locked, there is no way for anyone to gain access with a key (there is no cylinder on the exterior side). There is no exterior plate or exposed trim.
CATEGORY: Deadbolts
MANUFACTURER: Schlage
PRODUCT FAMILY: B80 Series
STYLE: One-Sided Medium Security Deadbolt
INTERIOR: Thumbturn on interior.
EXTERIOR: Residential Grade 1 Security Deadbolt
1" Throwbolt
FINISH: Satin Chrome - 626
FUNCTION: One-Sided Deadbolt / Typically used on front or back doors.
This deadbolt is operated by a thumbturn on the interior side only. No exterior Plate.
UL FIRE RATED: 3 Hour Fire Rated Latch with Fire Cup
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: .50 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).

Interior:
C (Base Diameter): 2-7/16"
D (Projection From Door): 1-1/4"
E (Thumbturn Base Plate Thickness): 5/16"
F (Thumbturn Length): 2"
DOOR PREP: Cross Bore: 1-5/8" Halfway through door only (from interior side)
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
Optional 2-1/4" thick door pack (See Parts & Accessories)
CYLINDER: N/A
LATCH FACEPLATE: 1" x 2-1/4" Round Corner + Fire Cup + 1-1/8" Adapter for 1-1/8 x 2-1/4" Face Plate Mortise
STRIKE PLATES: 1-1/8" x 2-3/4" Round Corner
LATCH BOLT: Full 1"
DOOR HANDING: Reversible for right or left hand doors.
UL FIRE RATED: 3 Hour Fire Rated Latch with Fire Cup
ANSI/BHMA: A156.5 Grade 1 Security
ADA: Turnpiece meets 4.13.9 ADA requirements.
