Description

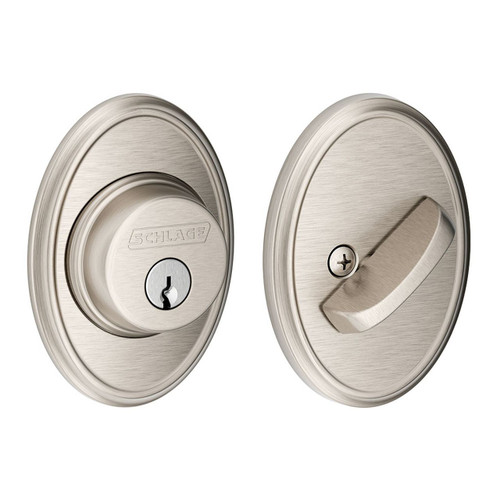

B60 Wakefield Series Single Cylinder Deadbolt
The Schlage B60 Single Cylinder Deadbolt with Decorative Interior and Exterior Plate is a premium security - Grade 1 deadbolt. Features include: easy installation, 1" throw deadbolt with a concealed hardened steel roller to prevent cutting or sawing the bolt. This deadbolt also comes standard with the door frame reinforcer, which significantly strengthens a wood jamb against kick-in attack and greatly increases the security effectiveness of the lock.
CATEGORY: Deadbolts
MANUFACTURER: Schlage
PRODUCT FAMILY: B60 Wakefield Series
STYLE: Single Cylinder Grade 1 Security Deadbolt
INTERIOR: Thumbturn on interior.
EXTERIOR: Heavy Duty Residential Grade 1 Security / 1" Throwbolt
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Single Cylinder Deadbolt / Typically used on front or back doors.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 2.20 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Schlage B60 Single Cylinder Deadbolt with Decorative Interior and Exterior Plate is a premium security - Grade 1 deadbolt. Features include: easy installation, 1" throw deadbolt with a concealed hardened steel roller to prevent cutting or sawing the bolt. This deadbolt also comes standard with the door frame reinforcer, which significantly strengthens a wood jamb against kick-in attack and greatly increases the security effectiveness of the lock.
CATEGORY: Deadbolts
MANUFACTURER: Schlage
PRODUCT FAMILY: B60 Wakefield Series
STYLE: Single Cylinder Grade 1 Security Deadbolt
INTERIOR: Thumbturn on interior.
EXTERIOR: Heavy Duty Residential Grade 1 Security / 1" Throwbolt
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Single Cylinder Deadbolt / Typically used on front or back doors.
The deadbolt is operated by a key on the exterior and a thumbturn on the interior.
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 2.20 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
B60 Wakefield Deadbolt
Exterior:
A (Base Diameter): 2-3/4" W x 3-7/8" H
B (Projection From Door): 1"
Interior:
A (Base Diameter): 2-3/4" W x 3-7/8" H
B (Projection From Door): 1-1/4"
C (Thumbturn Length): 2"
D (Thumbturn Base Plate Thickness): 3/8"
Exterior:
A (Base Diameter): 2-3/4" W x 3-7/8" H
B (Projection From Door): 1"
Interior:
A (Base Diameter): 2-3/4" W x 3-7/8" H
B (Projection From Door): 1-1/4"
C (Thumbturn Length): 2"
D (Thumbturn Base Plate Thickness): 3/8"
B60 Series Single Cylinder Deadbolt
DOOR PREP: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: Round Corner, Square Corner or Drive-In.
STRIKE PLATES: 1-1/8" x 2-3/4"
LATCH BOLT: Solid Zinc bolt; Full 1" Throw; 7/8" housing
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.36-2016 Commercial Grade 1, ANSI/BHMA A156.40-2015 Residential Grade AAA.
ADA: ADA Compliant Thumbturn.
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: 1-3/8" to 1-3/4"
KEYED CYLINDER: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: Round Corner, Square Corner or Drive-In.
STRIKE PLATES: 1-1/8" x 2-3/4"
LATCH BOLT: Solid Zinc bolt; Full 1" Throw; 7/8" housing
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.36-2016 Commercial Grade 1, ANSI/BHMA A156.40-2015 Residential Grade AAA.
ADA: ADA Compliant Thumbturn.
Please contact us with any questions @ 1-866-755-LOCK (5625).
