Schlage

Schlage / B562 Deadbolt / Double Cylinder

1 review Write a Review
SKU:
b562p619

…

See more
Limited-Time Offers:
Product Details

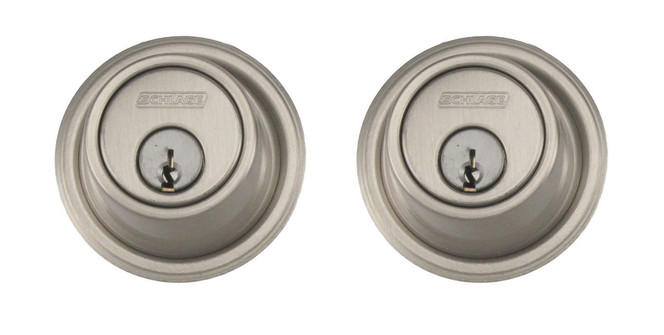

B562 Series Double Cylinder Deadbolt

The Schlage B560 Single Cylinder Deadbolt is a heavy duty security - Grade 2 deadbolt.  Features include: easy installation, 1" throw deadbolt with a concealed hardened steel roller to prevent cutting or sawing the bolt.  A thick door pack is available for 2-1/4 inch doors.  See "Thick Door Options" above.

CATEGORY:                    Deadbolts

MANUFACTURER:         Schlage

PRODUCT FAMILY:       B562 Series

STYLE:                            Double Cylinder Deadbolt

INTERIOR:                       Keyed Cylinder on Both Sides.

EXTERIOR:                      ANSI Certified Commercial Grade 2 / 1" Throwbolt

KEYED CYLINDER:         Pin & Tumbler / 5-Pin Key System

FINISH:                             Bright Brass - 605

FUNCTION:                      Double Cylinder Deadbolt / Typically used on front or back doors.
                                          The deadbolt is operated by a key on the exterior and a key on the interior.

WARRANTY:                   Manufacturer - Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:       2.40 lbs.

Helpful Hint:
  • Double Cylinder deadbolts are typically used when there is glass within 3' of the door.  A double cylinder prevents someone from breaking the glass and reaching through and opening the deadbolt from the inside.  If you choose a double cylinder, have a plan to exit in case of an emergency - you will need a key to exit the house if the door is locked.

Please contact us with any questions @ 1-866-755-LOCK (5625).
B562 Deadbolt

B562 Deadbolt Dimensions

Exterior:
A (Base Diameter):                 2-1/2"
B (Projection From Door):     1"

Interior:
A (Base Diameter):                 2-1/2"
B (Projection From Door):     1"
B562 Series Single Cylinder Deadbolt

DOOR PREP:                  Cross Bore: 2-1/8" or 1-1/2"
                                       Edge Bore: 1"
                                       Latch Face: 1" x 2-1/4"

BACKSET:                      Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:        Standard: 1-3/8" to 1-3/4" / Optional: 2-1/4"

KEYED CYLINDER:        Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway

LATCH FACEPLATE:     1" x 2-1/4" Square Corner Faceplate.

STRIKE PLATES:            1-1/8" x 2-3/4" Square Corner

LATCH BOLT:                Solid Zinc bolt; Full 1" Throw; 7/8" housing

DOOR HANDING:            Reversible for right or left hand doors.

ANSI/BHMA:                   ANSI Certified A156.36-2010 Commercial Grade 2 .

ADA:                               ADA Compliant Thumbturn.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com
