Description

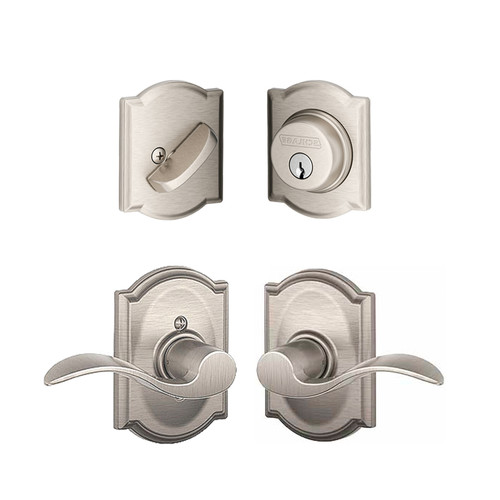

Accent Passage Lever with Camelot Rose and B60 Single Cylinder Deadbolt
The simple elegance of the Accent Passage Lever with Camelot Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will enhance any room's warmth and beauty.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: F Series - Decorative Collection
PRODUCT FAMILY: Accent
STYLE: Wave, decorative lever.
INTERIOR: Easy Installation
EXTERIOR: Heavy Duty Residential Grade 1 Security / 1" Throwbolt
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Keyed Entry Set with Passage Lever & Deadbolt / Typically used on front or back doors.
Deadbolt is locked or unlocked by key outside or turnbutton inside.
HANDING: This lever will work on either a right or left hand door application.
Reversible lever chasis (non-handed product).
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 4.7 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The simple elegance of the Accent Passage Lever with Camelot Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will enhance any room's warmth and beauty.
CATEGORY: Door Levers
MANUFACTURER: Schlage
COLLECTION: F Series - Decorative Collection
PRODUCT FAMILY: Accent
STYLE: Wave, decorative lever.
INTERIOR: Easy Installation
EXTERIOR: Heavy Duty Residential Grade 1 Security / 1" Throwbolt
KEYED CYLINDER: Pin & Tumbler / 5-Pin Key System
FINISH: Satin Nickel - 619
FUNCTION: Keyed Entry Set with Passage Lever & Deadbolt / Typically used on front or back doors.
Deadbolt is locked or unlocked by key outside or turnbutton inside.
HANDING: This lever will work on either a right or left hand door application.
Reversible lever chasis (non-handed product).
WARRANTY: Manufacturer - Lifetime Limited Finish and Mechanical
SHIPPING WEIGHT: 4.7 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Accent Lever with Camelot Rose
A (Base Dimensions): 2.84" W x 4.15" H x 0.777" Depth
B (Lever Length): 4-5/32" (106mm)
C (Projection From Door): 2-23/32" (57mm)
A (Base Dimensions): 2.84" W x 4.15" H x 0.777" Depth
B (Lever Length): 4-5/32" (106mm)
C (Projection From Door): 2-23/32" (57mm)
Accent Lever Keyed Entry Set
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Lever: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Lever: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Deadbolt: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LEVER: Passage
LATCH FACEPLATES: 1" x 2-1/4" Latch options include: Round Corner or Drive-In.
STRIKE PLATES: Deadbolt: 1-1/8" x 2-3/4"
Lever: 1-5/8" x 2-1/4" Round Corner Strike.
LATCH BOLT: Deadbolt: Solid Zinc bolt; Full 1" Throw; 7/8" housing
Lever: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: Deadbolt: A156.5-2001 Grade 1
Lever: A156.2, 1996, Grade 2. housing
ADA: Complies with ADA Accessibility Guidelines
Please contact us with any questions @ 1-866-755-LOCK (5625).
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Lever: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Lever: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
KEYED CYLINDER: Deadbolt: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway
LEVER: Passage
LATCH FACEPLATES: 1" x 2-1/4" Latch options include: Round Corner or Drive-In.
STRIKE PLATES: Deadbolt: 1-1/8" x 2-3/4"
Lever: 1-5/8" x 2-1/4" Round Corner Strike.
LATCH BOLT: Deadbolt: Solid Zinc bolt; Full 1" Throw; 7/8" housing
Lever: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Reversible Lever Chasis. Will work on either right or left hand doors.
ANSI/BHMA: Deadbolt: A156.5-2001 Grade 1
Lever: A156.2, 1996, Grade 2. housing
ADA: Complies with ADA Accessibility Guidelines
Please contact us with any questions @ 1-866-755-LOCK (5625).
