Schlage

Schlage / Accent with Camelot Rose and Deadbolt / B60 Single Cylinder Deadbolt with Passage Lever

No reviews yet Write a Review
SKU:
fb10acc619cam

Accent Passage Lever with Camelot Rose and B60 Single Cylinder Deadbolt The simple elegance of the Accent Passage Lever with Camelot Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt wi…

See more
Limited-Time Offers:
Product Details
Accent Passage Lever with Camelot Rose and B60 Single Cylinder Deadbolt

The simple elegance of the Accent Passage Lever with Camelot Rose combined with the Security of the B60 Smaller Profile Single Cylinder Deadbolt will enhance any room's warmth and beauty.

CATEGORY:                    Door Levers

MANUFACTURER:          Schlage

COLLECTION:                 F Series - Decorative Collection

PRODUCT FAMILY:        Accent

STYLE:                             Wave, decorative lever.

INTERIOR:                       Easy Installation

EXTERIOR:                      Heavy Duty Residential Grade 1 Security / 1" Throwbolt

KEYED CYLINDER:         Pin & Tumbler / 5-Pin Key System

FINISH:                             Satin Nickel - 619

FUNCTION:                      Keyed Entry Set with Passage Lever & Deadbolt / Typically used on front or back doors.
                                          Deadbolt is locked or unlocked by key outside or turnbutton inside.

HANDING:                        This lever will work on either a right or left hand door application.
                                          Reversible lever chasis (non-handed product).

WARRANTY:                    Manufacturer - Lifetime Limited Finish and Mechanical

SHIPPING WEIGHT:        4.7 lbs.


Please contact us with any questions @ 1-866-755-LOCK (5625).
Accent Lever with Camelot Rose

Accent Lever Dimensions

A (Base Dimensions):            2.84" W x 4.15" H x 0.777" Depth
B (Lever Length):                   4-5/32"   (106mm)
C (Projection From Door):      2-23/32"  (57mm)
Accent Lever Keyed Entry Set

DOOR PREP:                  Deadbolt:  Cross Bore:  2-1/8" or 1-1/2"
                                                           Edge Bore:  1"
                                                           Latch Face:  1" x 2-1/4"
                                         Lever:       Cross Bore:  2-1/8"
                                                           Edge Bore:  1"
                                                           Latch Face:  1" x 2-1/4"

BACKSET:                      Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                         Lever:       Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:       Standard 1-3/8" to 1-3/4"

KEYED CYLINDER:        Deadbolt: Pin & Tumbler / 5-Pin Solid Brass Key System / C Keyway

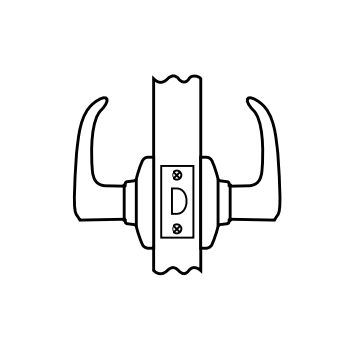

LEVER:                            Passage

LATCH FACEPLATES:   1" x 2-1/4" Latch options include:  Round Corner or Drive-In.

STRIKE PLATES:           Deadbolt: 1-1/8" x 2-3/4"
                                         Lever: 1-5/8" x 2-1/4" Round Corner Strike.

LATCH BOLT:                 Deadbolt: Solid Zinc bolt; Full 1" Throw; 7/8" housing
                                         Lever: Plainlatch - 1/2" throw; 7/8" housing

DOOR HANDING:           Reversible Lever Chasis.  Will work on either right or left hand doors.

ANSI/BHMA:                   Deadbolt: A156.5-2001 Grade 1
                                         Lever: A156.2, 1996, Grade 2. housing

ADA:                                Complies with ADA Accessibility Guidelines

Please contact us with any questions @ 1-866-755-LOCK (5625).
Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com
