Description

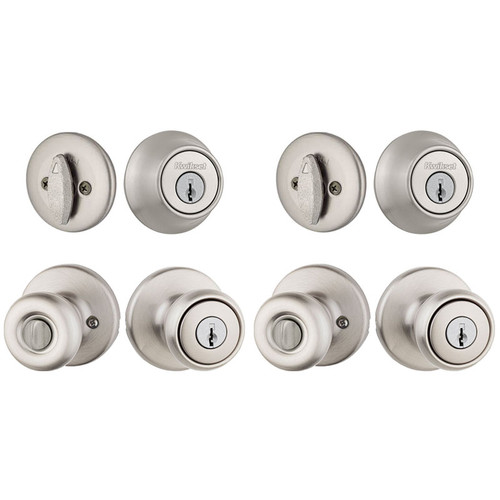

Tylo Two Keyed Entry Knobs and Two Single Cylinder Deadbolts Combo Pack
The classic design of the Tylo is at home in any décor. The style lends a graceful finish to any door.
CATEGORY: Door Knobs
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset
PRODUCT FAMILY: Tylo
STYLE: Bell-shaped knob
INTERIOR: Classic bell-shaped knob / Kwik-Install Installation
EXTERIOR: Residential Grade 3 Security / 5-Pin Key System
DEADBOLT: 660 - Residential Grade 3 Security / 1" Throwbolt
FINISH: Satin Nickel - 15
FUNCTION: Keyed Entry Knob and Deadbolt / Typically used on front or back doors.
Both knob & deadbolt are locked or unlocked by key outside or turnbutton inside.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 4.5 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The classic design of the Tylo is at home in any décor. The style lends a graceful finish to any door.
CATEGORY: Door Knobs
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset
PRODUCT FAMILY: Tylo
STYLE: Bell-shaped knob
INTERIOR: Classic bell-shaped knob / Kwik-Install Installation
EXTERIOR: Residential Grade 3 Security / 5-Pin Key System
DEADBOLT: 660 - Residential Grade 3 Security / 1" Throwbolt
FINISH: Satin Nickel - 15
FUNCTION: Keyed Entry Knob and Deadbolt / Typically used on front or back doors.
Both knob & deadbolt are locked or unlocked by key outside or turnbutton inside.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 4.5 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Tylo Knob
A (Base Diameter): 2-5/8"
B (Projection From Door): 2-3/8"
C (Knob Diameter): 1-7/8"
660 Deadbolt
Exterior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1-1/8"
Interior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1"
C (Thumbturn Length): 1-3/4"
D (Thumbturn Base Plate Thickness): 3/8"
A (Base Diameter): 2-5/8"
B (Projection From Door): 2-3/8"
C (Knob Diameter): 1-7/8"
660 Deadbolt
Exterior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1-1/8"
Interior:
A (Base Diameter): 2-1/2"
B (Projection From Door): 1"
C (Thumbturn Length): 1-3/4"
D (Thumbturn Base Plate Thickness): 3/8"
Tylo Two Knobs and Two Single Cylinder Deadbolts Entry Combo Pack
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Knob: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Knob: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: (Knob: 1-3/4") (Deadbolt: 1-3/8" to 1-3/4")
Optional: 2-1/4" thick door pack (See Parts & Accessories)
KEYED CYLINDER: Traditional / Pin & Tumbler / 5-Pin Key System
LATCH FACEPLATES: 1" x 2-1/4" Round Corner
STRIKE PLATES: Deadbolt: 1-5/8" Wide x 2-1/4" Height - Light Duty Round Corner Strike
Knob: 1-3/4" Wide x 2-1/4" Height - Full Lip Round Corner Strike
LATCH BOLT: Deadbolt: Full 1" Solid Core
Knob: Deadlatch - 1/2" throw; nickel plated.
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: A156.2 Grade 3 for Deadbolt. A156.5 Grade 3 for Knob.
ADA: N/A
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Knob: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Knob: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: (Knob: 1-3/4") (Deadbolt: 1-3/8" to 1-3/4")
Optional: 2-1/4" thick door pack (See Parts & Accessories)
KEYED CYLINDER: Traditional / Pin & Tumbler / 5-Pin Key System
LATCH FACEPLATES: 1" x 2-1/4" Round Corner
STRIKE PLATES: Deadbolt: 1-5/8" Wide x 2-1/4" Height - Light Duty Round Corner Strike
Knob: 1-3/4" Wide x 2-1/4" Height - Full Lip Round Corner Strike
LATCH BOLT: Deadbolt: Full 1" Solid Core
Knob: Deadlatch - 1/2" throw; nickel plated.
DOOR HANDING: Reversible for right or left hand doors.
ANSI/BHMA: A156.2 Grade 3 for Deadbolt. A156.5 Grade 3 for Knob.
ADA: N/A
