Description

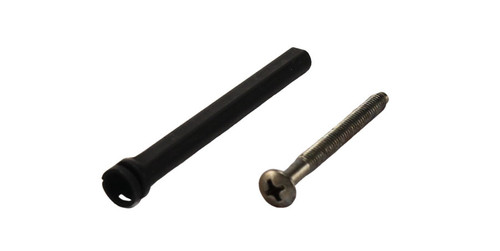

Thick Door Pack Handleset Bottom Thru Bolt and Deadbolt torque blade.
The Kwikset Thick Door Pack Handleset Adapter has two of the parts necessary to convert a standard handleset to fit a 1-3/4" to 2-1/4" thick door. The bolt is designed to secure the bottom of the handleset when using the thru-bolt to secure handleset to the door. The deadbolt torque blade is designed to fit all single cylinder handlesets. You will need additional parts to complete the handleset extension from 1-3/4" to 2-1/4" thick doors - see below.
The Kwikset Thick Door Pack Handleset Adapter has two of the parts necessary to convert a standard handleset to fit a 1-3/4" to 2-1/4" thick door. The bolt is designed to secure the bottom of the handleset when using the thru-bolt to secure handleset to the door. The deadbolt torque blade is designed to fit all single cylinder handlesets. You will need additional parts to complete the handleset extension from 1-3/4" to 2-1/4" thick doors - see below.
If the handleset you purchased has an adjustable thru bolt on the bottom you will need a different part number (#81861). The torque blade is not included with this part.
Please see quick reference guide below or if you need help determining the parts you need please give us a call.
MANUFACTURER: Kwikset Corporation
CATEGORY: Parts and Accessories
SUB CATEGORY: Thick Door Packs - Handleset
FUNCTION: Thick Door Thru-Bolt for mounting bottom of handleset to door
Thick Door torque blade for all Kwikset Single Cylinder Handlesets
COMPATIBILITY: Thru Bolt - only the following handleset styles use this type of Thru Bolt:
Amherst, Arlington, Ashfield, Avalon, Chelsea, Hawthorne, Shelburne, and Tavaris.
Deadbolt Torque Blade - All Kwikset Single Cylinder Handlesets - Model #'s
800, 553 and 687
FINISH: Satin Nickel - 15
SHIPPING WEIGHT: .01 lbs.
QUICK REFERENCE GUIDE - HANDLESET THICK DOOR PARTS
--------------------------------------------------------------------------------------------------------------------------------------------------------------
818 Series Single Cylinder Handlesets: (Camino, Prague, Prescott, San Clemente and Vancouver) (Adjustable bottom thru-bolt)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81861
Knob / Lever Tie Bolts: Order part # 820291
Deadbolt Tie Bolts (258 Series): Order part # 83022
819 Series Dummy Cylinder Handlesets: (Camino, Prague, Prescott, San Clemente and Vancouver) (Adjustable bottom thru-bolt)
Handleset Bottom Thru Bolt: Order part # 81861
Knob / Lever Tie Bolts: Order part # 820291
Deadbolt Tie Bolts (258 Series): Order part # 83022
Please contact us with any questions @ 1-866-755-LOCK (5625).
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81861
Knob / Lever Tie Bolts: Order part # 820291
Deadbolt Tie Bolts (258 Series): Order part # 83022
819 Series Dummy Cylinder Handlesets: (Camino, Prague, Prescott, San Clemente and Vancouver) (Adjustable bottom thru-bolt)
Handleset Bottom Thru Bolt: Order part # 81861
Knob / Lever Tie Bolts: Order part # 820291
Deadbolt Tie Bolts (258 Series): Order part # 83022
--------------------------------------------------------------------------------------------------------------------------------------------------------------
800 Series Single Cylinder Handlesets: (Amherst, Arlington, Ashfield, Avalon, Chelsea, Hawthorne, Shelburne, and Tavaris)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (980 Series): Order part # 81691
801 Series Double Cylinder Handlesets: (Amherst, Arlington, Ashfield, Avalon, Chelsea, Hawthorne, Shelburne, and Tavaris)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (985 Series): Order part # 81249
802 Series Dummy Cylinder Handlesets: (Amherst, Arlington, Ashfield, Avalon, Chelsea, Hawthorne, Shelburne, and Tavaris)
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (980 Series): Order part # 81691
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 86129
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (780 Series): Order part # 81691
801 Austin Series Double Cylinder Handlesets: (Austin) (Adjustable 3 position thru-bolt)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 86129
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (985 Series): Order part # 81249
802 Series Dummy Cylinder Handlesets: (Austin) (Adjustable 3 position thru-bolt)
Handleset Bottom Thru Bolt: Order part # 86129
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (780 Series): Order part # 81691
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (660 Series): Order part # 86129
689 Series Double Cylinder Handlesets: (Amador, Belleview, Dakota and Henley)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (665 Series): Order part # 86130
699 Series Dummy Cylinder Handlesets: (Amador, Belleview, Dakota and Henley)
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (660 Series): Order part # 86129
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (980 Series): Order part # 81691
801 Series Double Cylinder Handlesets: (Amherst, Arlington, Ashfield, Avalon, Chelsea, Hawthorne, Shelburne, and Tavaris)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (985 Series): Order part # 81249
802 Series Dummy Cylinder Handlesets: (Amherst, Arlington, Ashfield, Avalon, Chelsea, Hawthorne, Shelburne, and Tavaris)
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (980 Series): Order part # 81691
--------------------------------------------------------------------------------------------------------------------------------------------------------------
800 Austin Series Single Cylinder Handlesets: (Austin) (Adjustable 3 position thru-bolt)Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 86129
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (780 Series): Order part # 81691
801 Austin Series Double Cylinder Handlesets: (Austin) (Adjustable 3 position thru-bolt)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 86129
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (985 Series): Order part # 81249
802 Series Dummy Cylinder Handlesets: (Austin) (Adjustable 3 position thru-bolt)
Handleset Bottom Thru Bolt: Order part # 86129
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (780 Series): Order part # 81691
--------------------------------------------------------------------------------------------------------------------------------------------------------------
687 Series Single Cylinder Handlesets: (Amador, Belleview, Dakota and Henley)Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (660 Series): Order part # 86129
689 Series Double Cylinder Handlesets: (Amador, Belleview, Dakota and Henley)
Handleset Spindle: Order part # 83669
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (665 Series): Order part # 86130
699 Series Dummy Cylinder Handlesets: (Amador, Belleview, Dakota and Henley)
Handleset Bottom Thru Bolt: Order part # 81838
Knob / Lever Tie Bolts: Order part # 81780
Deadbolt Tie Bolts (660 Series): Order part # 86129
--------------------------------------------------------------------------------------------------------------------------------------------------------------
Helpful Hint: If you order the handleset and appropriate thick door packs, we can install them on the handleset at no additional charge. If you would like this additional service, please make a note in the comments box during checkout.Please contact us with any questions @ 1-866-755-LOCK (5625).
