Kwikset

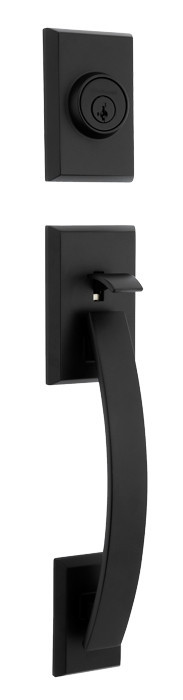

Kwikset / Tavaris Handleset / Double Cylinder - SmartKey
- SKU:
- 801tvh514smt
Tavaris Double Cylinder Handleset The modern lines of the Tavaris handleset makes a strong statement to your décor with its square cornering and distinct details. CATEGORY: &nbs…
See more
Limited-Time Offers:
$472.10
$250.21
(You save:
$221.89
)
Product Details
A (Exterior Projection From Door): 2-1/2"
B (Cross Bore Hole Spacing - Center to Center): 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-13/32"
D (Overall Handleset Height): 18"
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/4"
Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
LATCH FACEPLATE: 1" x 2-1/4" Round Corner Latches.
STRIKE PLATES: Deadbolt: 1-1/4" Wide x 3-5/8" Tall strike plate.
Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: A156.5 Grade 1 for deadbolt.
ADA: N/A
Tavaris Double Cylinder Handleset
The modern lines of the Tavaris handleset makes a strong statement to your décor with its square cornering and distinct details.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: Tavaris
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Heavy Duty Residential Grade 1 Security Deadbolt / 1" Titanium Alloy Throw bolt Core
Solid Forged Brass / Concealed Screws
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
FINISH: Satin Nickel - 15
FUNCTION: Double Cylinder Handleset / Typically used on front doors.
The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 7.50 lbs.
Helpful Hint: Double Cylinder deadbolts are typically used when there is glass within 3' of the door. A double cylinder prevents someone from breaking the glass and reaching through and opening the deadbolt from the inside. If you choose a double cylinder, have a plan to exit in case of an emergency - you will need a key to exit the house if the door is locked.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The modern lines of the Tavaris handleset makes a strong statement to your décor with its square cornering and distinct details.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: Tavaris
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Heavy Duty Residential Grade 1 Security Deadbolt / 1" Titanium Alloy Throw bolt Core
Solid Forged Brass / Concealed Screws
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
FINISH: Satin Nickel - 15
FUNCTION: Double Cylinder Handleset / Typically used on front doors.
The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 7.50 lbs.
Helpful Hint: Double Cylinder deadbolts are typically used when there is glass within 3' of the door. A double cylinder prevents someone from breaking the glass and reaching through and opening the deadbolt from the inside. If you choose a double cylinder, have a plan to exit in case of an emergency - you will need a key to exit the house if the door is locked.
Please contact us with any questions @ 1-866-755-LOCK (5625).
A (Exterior Projection From Door): 2-1/2"
B (Cross Bore Hole Spacing - Center to Center): 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-13/32"
D (Overall Handleset Height): 18"
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/4"
Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
LATCH FACEPLATE: 1" x 2-1/4" Round Corner Latches.
STRIKE PLATES: Deadbolt: 1-1/4" Wide x 3-5/8" Tall strike plate.
Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.
Need a different deadbolt strike plate?: Optional Strikes Plates for Purchase
LATCH BOLT: Deadbolt: Brass Bolt; Full 1" Throw; Titanium Alloy Roller Pin
Handle: Plainlatch - 1/2" throw; nickel plated.
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: A156.5 Grade 1 for deadbolt.
ADA: N/A
Warranty Information
Kwikset Warranty
Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.
Electronics Coverage: Electronic components are covered for 1 year from purchase.
Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.
Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.
Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.
For more details please visit Kwikset.com
Schlage Warranty
Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.
Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.
Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).
Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.
Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.
For more details please visit Schlage.com
Reviews
1 Review
-
Front door entry
This is a beautiful handleset, sturdy with contemporary lines. It was purchased to replace an old bright brass handleset which had lost its finish. The installation went smoothly, fitting well into the existing holes in our door. It looks so sharp on our newly painted front door.
