Description

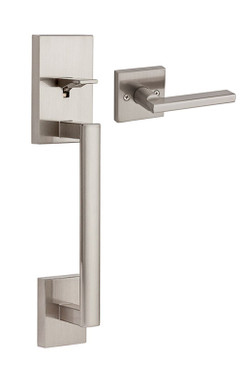

San Clemente Handleset Handle
The modern lines of the San Clemente handleset makes a strong statement to your décor with its square cornering and distinct details. The handle may be used with most any Kwikset deadbolt if there are two bore holes in the door (one for the Handle and one for the deadbolt). Standard Deadbolts or Electronic Deadbolts for Keyless Entry are available.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: San Clemente
STYLE: One-Piece Decorative Handle
INTERIOR: Halifax Lever or Select Interior Knob or Lever from the Options above.
FINISH: Satin Nickel - 15
FUNCTION: Handleset Handle Only / Non Locking / Typically used on front doors in combination with a Deadbolt.
The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 5.2 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The modern lines of the San Clemente handleset makes a strong statement to your décor with its square cornering and distinct details. The handle may be used with most any Kwikset deadbolt if there are two bore holes in the door (one for the Handle and one for the deadbolt). Standard Deadbolts or Electronic Deadbolts for Keyless Entry are available.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: San Clemente
STYLE: One-Piece Decorative Handle
INTERIOR: Halifax Lever or Select Interior Knob or Lever from the Options above.
FINISH: Satin Nickel - 15
FUNCTION: Handleset Handle Only / Non Locking / Typically used on front doors in combination with a Deadbolt.
The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 5.2 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
See "A" & "C" Dimension for Handle
A (Exterior Projection From Door): 2-5/8"
B (Cross Bore Hole Spacing - Center to Center): 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-13/32" Through 9-11/16"
D (Overall Handleset Height): 17-29/32"
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/4"
Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs
LATCH FACEPLATE: 1" x 2-1/4" Latch faceplate includes: Round Corner, Square Corner or Drive-In.
STRIKE PLATES: Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.
Need a different deadbolt strike plate?: Optional Strikes Plates for Purchase
LATCH BOLT: Plainlatch - 1/2" throw; nickel plated.
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: N/A
ADA: N/A
