Description

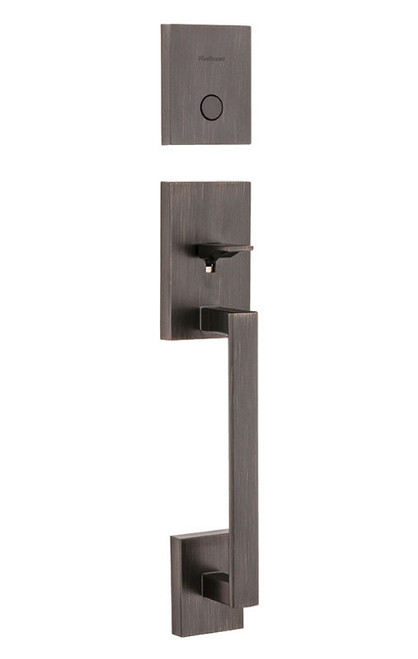

San Clemente Dummy Cylinder Handleset
The modern lines of the San Clemente handleset makes a strong statement to your décor with its square cornering and distinct details.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: San Clemente
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Solid Forged Brass
KEYED CYLINDER: N/A - Dummy Cylinder Included, no operation.
FINISH: Venetian Bronze - 11P
FUNCTION: Dummy Cylinder Handleset / Typically used on inactive leaf of double front doors.
Handle and grip act as a pull only - no operation.
This handleset is designed for decorative purposes only.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 6.50 lbs.
Helpful Hint:
Even though this handleset is a dummy function, it still requires two 2-1/8" cross bore holes for mounting.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The modern lines of the San Clemente handleset makes a strong statement to your décor with its square cornering and distinct details.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: San Clemente
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Solid Forged Brass
KEYED CYLINDER: N/A - Dummy Cylinder Included, no operation.
FINISH: Venetian Bronze - 11P
FUNCTION: Dummy Cylinder Handleset / Typically used on inactive leaf of double front doors.
Handle and grip act as a pull only - no operation.
This handleset is designed for decorative purposes only.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 6.50 lbs.
Helpful Hint:
Even though this handleset is a dummy function, it still requires two 2-1/8" cross bore holes for mounting.
Please contact us with any questions @ 1-866-755-LOCK (5625).
A (Exterior Projection From Door): 2-5/8"
B (Cross Bore Hole Spacing - Center to Center): 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-13/32" Through 9-11/16"
D (Overall Handleset Height): 17-29/32"
DOOR PREP: Deadbolt: Cross Bore: 2-1/8"
Edge Bore: N/A
Latch Face: N/A
Handle: Cross Bore: 2-1/8"
Edge Bore: N/A
Latch Face: N/A
BACKSET: Deadbolt: N/A
Handle: N/A
DOOR THICKNESS: Standard 1-3/4"
Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs
KEYED CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: N/A
LATCH BOLT: N/A
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: N/A
ADA: N/A
