Description

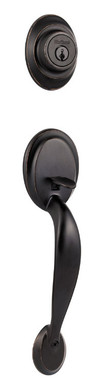

Enjoy increased security and easy fit with the Montara handleset. 2 points of locking, on the deadbolt and the handleset, provide double the security. And the adjustable through bolt at the bottom of the handleset allows for easy installation and provides you peace of mind knowing that it will adjust to fit the bottom hole in your door.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: Montara
STYLE: Two-Piece Decorative Handleset
INTERIOR: Juno Knob
EXTERIOR: Heavy Duty Residential Grade 2 Security Deadbolt / 1" Steel Deadbolt Latch
Solid Forged Brass
KEYED CYLINDER: Standard: SmartKey Cylinder with BumpGuard Feature
FINISH: Venetian Bronze - 11P
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The latch bolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The handle portion can be locked separately from the deadbolt by using the key on the
The deadbolt is operated by a key on the exterior and a thumb turn on the interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 6.50 lbs.
Helpful Hints:
- This handleset can be used with or without the deadbolt above the handleset.
Please contact us with any questions @ 1-866-755-LOCK (5625).
A (Exterior Projection From Door): 2-19/32"
B (Cross Bore Hole Spacing - Center to Center): 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): Adjustable to Three Settings (8-3/8", 9-1/8", 9-3/4")
D (Overall Handleset Height): 17-13/16"
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard: 1-3/4" Only
Note: No thick door pack available
KEYED CYLINDER: Standard: SmartKey Cylinder with BumpGuard Feature
LATCH FACEPLATE: 1" x 2-1/4" Round Corner Faceplate Latches (Deadbolt Latch & Handle Deadlatch)
STRIKE PLATES: Deadbolt: 1-1/4" Wide x 3-5/8" Tall strike plate.
Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.
Need a different deadbolt strike plate?: Optional Strikes Plates for Purchase
LATCH BOLT: Deadbolt: Full 1" Solid Core
Handle: Deadlatch - 1/2" throw; nickel plated.
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: Deadbolt: A156.5 Grade 2
Keyed Handleset: A156.2 Grade 2
ADA: N/A
