Kwikset

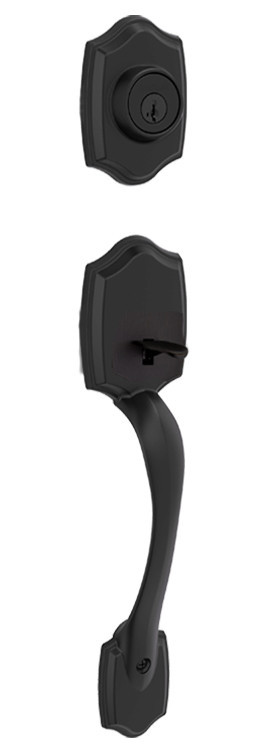

Kwikset / Belleview Handleset / Single Cylinder - SmartKey

1 review Write a Review
SKU:
687bw514smt

Belleview Single Cylinder Handleset The beveled design of the Belleview adds elegance to its traditional arched shape. CATEGORY:                     Handlesets MA…

See more
Limited-Time Offers:
$179.60
$95.19
(You save: $84.41 )
Selected Finish is
Hurry up! only left
Adding to cart… The item has been added
Product Details
Belleview Single Cylinder Handleset

The beveled design of the Belleview adds elegance to its traditional arched shape.

CATEGORY:                     Handlesets

MANUFACTURER:          Kwikset Corporation

COLLECTION:                 Kwikset Series

PRODUCT FAMILY:         Belleview

STYLE:                            Two-Piece Decorative Handleset

INTERIOR:                       Select Interior Knob or Lever

EXTERIOR:                      Residential Grade 3 Security Deadbolt

KEYED CYLINDER:         SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

FINISH:                             Satin Chrome - 26D

FUNCTION:                      Single Cylinder Handleset / Typically used on front doors.
                                          The handle latch bolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
                                          The deadbolt is operated by a key on the exterior and a thumb turn on the interior.

WARRANTY:                    Manufacturer - Lifetime Mechanical / Lifetime Finish

SHIPPING WEIGHT:        5.50 lbs.

Please contact us with any questions @ 1-866-755-LOCK (5625).

Dakota Handleset Dimensions

A (Exterior Projection From Door):                                                      2-1/32"
B (Cross Bore Hole Spacing - Center to Center):                                5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw):       8-13/32"
D (Overall Handleset Height):                                                              18-1/16"

DOOR PREP:                  Deadbolt: Cross Bore:  2-1/8" or 1-1/2"
                                                          Edge Bore:  1"
                                                          Latch Face:  1" x 2-1/4"
                                         Handle:    Cross Bore:  2-1/8"
                                                          Edge Bore:  1"
                                                          Latch Face:  1" x 2-1/4"

BACKSET:                      Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                        Handle:     Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:      Standard 1-3/4"
                                        Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs

KEYED CYLINDER:       SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

LATCH FACEPLATE:    1" x 2-1/4" Round Corner Latches.

STRIKE PLATES:          Deadbolt:  1" Wide x 2-1/4" Tall strike plate.
                                       Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.


                                       Need a different deadbolt strike plate?:  Optional Strikes Plates for Purchase

LATCH BOLT:                Deadbolt:  Full 1" Solid Core
                                       Handle:     Plainlatch -  1/2" throw; nickel plated.

DOOR HANDING:         Reversible for right or left hand doors.  Specify handing when ordering handed levers as interior trim for handleset (Interior Knob or Lever Options).

ANSI/BHMA:                  A156.5 Grade 3 for deadbolt.

ADA:                              N/A

Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com

Reviews

1 Review

  • beautiful
    5

    Posted by nina on May 17, 2021

    looks great, easy install
