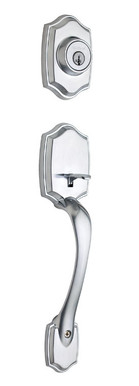

Kwikset / Belleview Handleset / Double Cylinder - SmartKey / Satin Chrome / 689BW 26D SMT

(No reviews yet) Write a Review
Item: 689bw26dsmt
MSRP:$137.40
$72.00
(You Save: $65.40 )
Select Your Options
Select Your Options
Select Your Options
Select Your Options
Select Your Options
"Warning": You are selecting an option which does not include an interior pack. Please check box to confirm

Matching Hardware

    31150,32601,29188,34935,32352

Coordinates

Description

Belleview Double Cylinder Handleset

The beveled design of the Belleview adds elegance to its traditional arched shape.

CATEGORY:                   Handlesets

MANUFACTURER:         Kwikset Corporation

COLLECTION:                Kwikset Series

PRODUCT FAMILY:       Belleview

STYLE:                            Two-Piece Decorative Handleset

INTERIOR:                       Select Interior Knob or Lever

EXTERIOR:                      Residential Grade 3 Security Deadbolt

KEYED CYLINDER:         SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

FINISH:                             Satin Chrome - 26D

FUNCTION:                      Double Cylinder Handleset / Typically used on front doors.
                                          The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
                                          The deadbolt is operated by a key on the exterior and interior.

WARRANTY:                    Manufacturer - Lifetime Mechanical / Lifetime Finish

SHIPPING WEIGHT:        6.10 lbs.

Helpful Hint:    Double Cylinder deadbolts are typically used when there is glass within 3' of the door.  A double cylinder prevents someone from breaking the glass and reaching through and opening the deadbolt from the inside.  If you choose a double cylinder, have a plan to exit in case of an emergency - you will need a key to exit the house if the door is locked.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Belleview Handleset

Dakota Handleset Dimensions

A (Exterior Projection From Door):                                                     2-1/32"
B (Cross Bore Hole Spacing - Center to Center):                                 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw):       8-13/32"
D (Overall Handleset Height):                                                               18-1/16"
Belleview Handleset

DOOR PREP:                  Deadbolt: Cross Bore:  2-1/8" or 1-1/2"
                                                          Edge Bore:  1"
                                                          Latch Face:  1" x 2-1/4"
                                         Handle:    Cross Bore:  2-1/8"
                                                          Edge Bore:  1"
                                                          Latch Face:  1" x 2-1/4"

BACKSET:                      Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                         Handle:     Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:       Standard:   1-3/4"
                                         Optional:     2-1/4" thick door pack (See Parts & Accessories)

KEYED CYLINDER:        SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

LATCH FACEPLATE:     1" x 2-1/4" Latch options include:  Round Corner, Square Corner or Drive-In.

STRIKE PLATES:            Deadbolt:  Several options available (Strike Plate Options).
                                          Handle:      2-1/4" full lip.  Strike options include:  Round or Square Corner.

LATCH BOLT:                  Deadbolt:  Full 1" Solid Core
                                          Handle:     Plainlatch -  1/2" throw; nickel plated.

DOOR HANDING:            Reversible for right or left hand doors.  Specify handing when ordering handed
                                          levers as interior trim for handleset (Interior Knob or Lever Options).

ANSI/BHMA:                    A156.5 Grade 3 for deadbolt.

ADA:                                 N/A

Shipping

UPS Ground Shipping Map

UPS Ground Time Transit Map

DoorLocksDirect.com is located in Tomball, TX.  Most orders ship complete within 24 hours.  You will get an e-mail once your order has shipped with the UPS tracking #.  UPS does not count the day the order is picked up.  The number of days in transit start the following day.  Weekends or holidays are not counted as transit days.
Calculate Shipping Charges:
  • Load items in shopping cart.
  • Click checkout button.
  • Enter shipping address information.
  • UPS shipping options will show cost.
  • You can click "Cancel" at any time and keep shopping.
Free Shipping Offer Details:
If your order is over $299 (before taxes and shipping charges), the shipping will automatically be removed during checkout (No Coupon Code is required) for Ground shipping charges in the 48 continental states (not valid in Alaska or Hawaii).

Reviews

You May Also Like

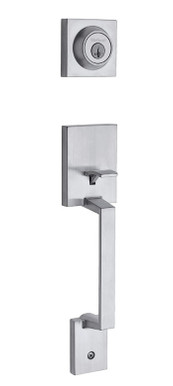

Kwikset / Amador Handleset / Double Cylinder - SmartKey / Satin Chrome / 689AMD 26D SMT

Kwikset / Amador Handleset / Double Cylinder - SmartKey / Satin Chrome / 689AMD 26D SMT

Kwikset


  • Double Cylinder Handleset
  • Deadbolt Keyed Both Sides
  • SmartKey
  • BMHA Residential Grade 3 Certified
  • Satin Chrome
Kwikset / Belleview Handleset / Double Cylinder - SmartKey / Satin Chrome / 689BW 26D SMT

Kwikset / Belleview Handleset / Double Cylinder - SmartKey / Satin Chrome / 689BW 26D SMT

Kwikset


  • Double Cylinder Handleset
  • Deadbolt Keyed Both Sides
  • SmartKey
  • BMHA Residential Grade 3 Certified
  • Satin Chrome
Kwikset / Chelsea Handleset / Double Cylinder - SmartKey  / Satin Chrome / 801CE 26D SMT

Kwikset / Chelsea Handleset / Double Cylinder - SmartKey / Satin Chrome / 801CE 26D SMT

Kwikset


  • Double Cylinder Handleset
  • Deadbolt Keyed Both Sides
  • SmartKey
  • Deadbolt BHMA Certified AAA Highest Residential Security
  • Satin Chrome

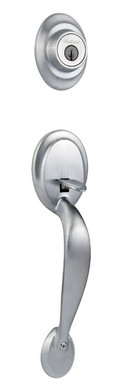

Kwikset / Dakota Handleset / Double Cylinder - SmartKey / Satin Chrome / 689DA 26D SMT
