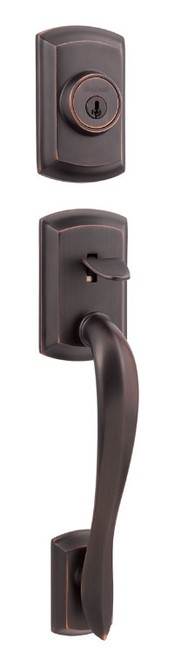

Avalon Single Cylinder Handleset
The Avalon has a slight touch of the coast, aesthetically coexisting with any color scheme or decor.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: Avalon
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Heavy Duty Residential Grade 1 Security Deadbolt / 1" Titanium Alloy Throw bolt Core
Solid Forged Brass / Concealed Screws
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
FINISH: Venetian Bronze - 11P
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The handle latch bolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and a thumb turn on the interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 7.00 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Avalon has a slight touch of the coast, aesthetically coexisting with any color scheme or decor.
CATEGORY: Handlesets
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset Signature Series
PRODUCT FAMILY: Avalon
STYLE: Two-Piece Decorative Handleset
INTERIOR: Select Interior Knob or Lever
EXTERIOR: Heavy Duty Residential Grade 1 Security Deadbolt / 1" Titanium Alloy Throw bolt Core
Solid Forged Brass / Concealed Screws
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
FINISH: Venetian Bronze - 11P
FUNCTION: Single Cylinder Handleset / Typically used on front doors.
The handle latch bolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
The deadbolt is operated by a key on the exterior and a thumb turn on the interior.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: 7.00 lbs.
Please contact us with any questions @ 1-866-755-LOCK (5625).
A (Exterior Projection From Door): 2-21/32"
B (Cross Bore Hole Spacing - Center to Center): 5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw): 8-13/32"
D (Overall Handleset Height): 18-5/32"
DOOR PREP: Deadbolt: Cross Bore: 2-1/8" or 1-1/2"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
Handle: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Deadbolt: Adjustable to 2-3/8" or 2-3/4"
Handle: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/4"
Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs
KEYED CYLINDER: SmartKey Cylinder with BumpGuard Feature
LATCH FACEPLATE: 1" x 2-1/4" Round Corner Latches.
STRIKE PLATES: Deadbolt: 1-1/4" Wide x 3-5/8" Tall strike plate.
Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.
Need a different deadbolt strike plate?: Optional Strikes Plates for Purchase
LATCH BOLT: Deadbolt: Brass Bolt; Full 1" Throw; Titanium Alloy Roller Pin
Handle: Plainlatch - 1/2" throw; nickel plated.
DOOR HANDING: Reversible for right or left hand doors. Specify handing when ordering handed
levers as interior trim for handleset (Interior Knob or Lever Options).
ANSI/BHMA: A156.5 Grade 1 for deadbolt.
ADA: N/A
