Kwikset / Amador Handleset / Double Cylinder - SmartKey

No reviews yet Write a Review
SKU:
689amd15smt

Amador Double Cylinder Handleset The Amador has a refined, structural look with its simplistic modern design. CATEGORY:                &nb…

See more
Limited-Time Offers:
$262.30
$139.01
(You save: $123.29 )
Selected Finish is
Hurry up! only left
Adding to cart… The item has been added
Product Details

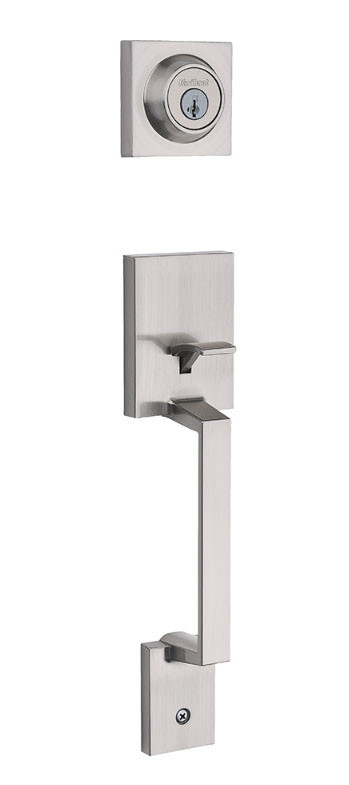

Amador Double Cylinder Handleset

The Amador has a refined, structural look with its simplistic modern design.

CATEGORY:                   Handlesets

MANUFACTURER:         Kwikset Corporation

COLLECTION:                Kwikset Series

PRODUCT FAMILY:        Amador

STYLE:                            Two-Piece Decorative Handleset

INTERIOR:                      Select Interior Knob or Lever

EXTERIOR:                     Residential Grade 3 Security Deadbolt

KEYED CYLINDER:        SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

FINISH:                            Satin Nickel - 15

FUNCTION:                     Double Cylinder Handleset / Typically used on front doors.
                                         The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
                                         The deadbolt is operated by a key on the exterior and interior.

WARRANTY:                    Manufacturer - Lifetime Mechanical / Lifetime Finish

SHIPPING WEIGHT:        6.10 lbs.

Helpful Hint:    Double Cylinder deadbolts are typically used when there is glass within 3' of the door.  A double cylinder prevents someone from breaking the glass and reaching through and opening the deadbolt from the inside.  If you choose a double cylinder, have a plan to exit in case of an emergency - you will need a key to exit the house if the door is locked.

Please contact us with any questions @ 1-866-755-LOCK (5625).
Amador Handleset Dimensions

D (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw):  9-11/16"
G (Exterior Projection From Door):                                                  2-3/32"
C (Overall Handleset Height - Front View):                                     17-15/32"  (Based on Standard Cross Bore Hole Spacing 5-1/2")

DOOR PREP:                  Deadbolt: Cross Bore:  2-1/8" or 1-1/2"
                                                          Edge Bore:  1"
                                                          Latch Face:  1" x 2-1/4"
                                         Handle:    Cross Bore:  2-1/8"
                                                          Edge Bore:  1"
                                                          Latch Face:  1" x 2-1/4"

BACKSET:                      Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                        Handle:     Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:      Standard 1-3/4"
                                        Optional 2-1/4" thick door pack (See Lock Parts & Accessories) Handleset Thick Door Packs

KEYED CYLINDER:       SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

LATCH FACEPLATE:    1" x 2-1/4" Round Corner Latches.

STRIKE PLATES:          Deadbolt:  1" Wide x 2-1/4" Tall strike plate.
                                       Handle: 1-3/4" Wide x 2-1/4" Tall full lip round corner strike.


                                       Need a different deadbolt strike plate?:  Optional Strikes Plates for Purchase

LATCH BOLT:                Deadbolt:  Full 1" Solid Core
                                       Handle:     Plainlatch -  1/2" throw; nickel plated.

DOOR HANDING:         Reversible for right or left hand doors.  Specify handing when ordering handed levers as interior trim for handleset (Interior Knob or Lever Options).

ANSI/BHMA:                  A156.5 Grade 3 for deadbolt.

ADA:                              N/A

Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com

Your Bonus Benefit

Free Standard Keying

Available on all keyed locksets we sell - choose keyed alike or keyed different - or any combination that fits your needs - at no extra cost.
