Kwikset

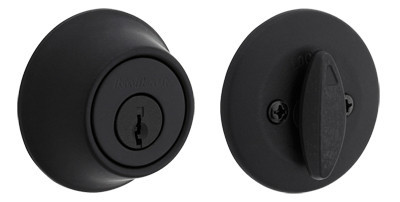

Kwikset / 660 Deadbolt / Single Cylinder

2 reviews Write a Review
SKU:
660514

660 Series Single Cylinder Deadbolt The Kwikset 660 Deadbolt is a single cylinder medium security deadbolt which provides tough, effective protection at an affordable price. CATEGORY:      â€¦

See more
Limited-Time Offers:
$45.60
$23.26
(You save: $22.34 )
Selected Finish is
Selected Latch Options is
Selected Deadbolt Strike Options is
Hurry up! only left
Adding to cart… The item has been added
Product Details
660 Series Single Cylinder Deadbolt

The Kwikset 660 Deadbolt is a single cylinder medium security deadbolt which provides tough, effective protection at an affordable price.

CATEGORY:                    Deadbolts

MANUFACTURER:         Kwikset Corporation

COLLECTION:                Kwikset

PRODUCT FAMILY:        660 Series

STYLE:                            Single Cylinder Medium Security Deadbolt

INTERIOR:                       Thumbturn on interior.

EXTERIOR:                      Residential Grade 3 Security Deadbolt / 1" Throwbolt

KEYED CYLINDER:         Traditional / Pin & Tumbler / 5-Pin Key System

FINISH:                             Satin Nickel - 15

FUNCTION:                      Single Cylinder Deadbolt / Typically used on front or back doors.
                                          The deadbolt is operated by a key on the exterior and a thumbturn on the interior.

WARRANTY:                    Manufacturer - Lifetime Mechanical / Lifetime Finish

SHIPPING WEIGHT:        1.20 lbs.

Please contact us with any questions @ 1-866-755-LOCK (5625).


Exterior:
A (Base Diameter):                                  2-1/2"
B (Projection From Door):                       1-1/8"

Interior:
A (Base Diameter):                                  2-1/2"
B (Projection From Door):                       1"
C (Thumbturn Length):                            1-3/4"
D (Thumbturn Base Plate Thickness):     3/8"

DOOR PREP:                    Cross Bore: 2-1/8""
                                           Edge Bore: 1"
                                           Latch Face: 1" x 2-1/4"

BACKSET:                         Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:         1-3/8" to 1-3/4" only.
                                           Optional 2-1/4" thick door pack  (See Lock Parts and Accessories #86129)

KEYED CYLINDER:          Traditional / Pin & Tumbler / 5-Pin Key System

LATCH FACEPLATE:        1" x 2-1/4" Round Corner Faceplate.

STRIKE PLATES:              Round corner strikes (1" Wide x 2-1/4" Tall) and Full Lip Strike (2-1/4" Tall x 1-3/4" Wide).

                                           Need a different strike plate?:  Optional Strikes Plates for Purchase

LATCH BOLT:                    Full 1" Solid Core

DOOR HANDING:             Reversible for right or left hand doors.

ANSI/BHMA:                      A156.5 Grade 3.

ADA:                                  Interior turn piece meets 4.13.9 ADA requirements.

Warranty Information

Kwikset Warranty

Mechanical & Finish Coverage: Both are covered for as long as the original purchaser occupies the home where the product was installed.

Electronics Coverage: Electronic components are covered for 1 year from purchase.

Authorized Seller Requirement: Warranty applies only to products purchased from Kwikset-authorized sellers (like Door Locks Direct); unauthorized purchases are not eligible.

Exclusions: No coverage for misuse, improper installation, chemical damage, commercial use, modifications, or mixing Kwikset with non-Kwikset trim; warranty is non-transferable.

Claims Process: Proof of purchase and defect description required; Kwikset may provide troubleshooting or replace the product and supplies a prepaid return label if a return is authorized.

For more details please visit Kwikset.com

Schlage Warranty

Mechanical & Finish Coverage: Most Schlage residential products include a Limited Lifetime Mechanical and Finish Warranty.

Electronics Coverage: Smart and electronic products carry a 3-year electronics warranty.

Original User & Authorized Seller Requirement: Warranty applies only to the original residential user, is non-transferable, and requires purchase from a Schlage-authorized seller (like Door Locks Direct).

Exclusions: No coverage for labor, normal wear, improper installation, misuse, environmental damage, commercial/common-area use, or Oil-Rubbed Bronze finish changes.

Schlage Remedy: Upon inspection, Schlage may replace with new/remanufactured product or refund the purchase price; customer must return the product with proof of purchase.

For more details please visit Schlage.com

Reviews

2 Reviews

  • Kwikset 660 Deadbolt
    5

    Posted by Richard Friedrich on Jul 21, 2025

    On Friday I received the Kwikset 660 Deadbolt. I installed it on the following Sunday. Instruction were great and it works well.

  • Locks purchased
    5

    Posted by Joey on Oct 21, 2024

    We love them. Looks were great. All components were more than enough. Will recommend to all our friends.
