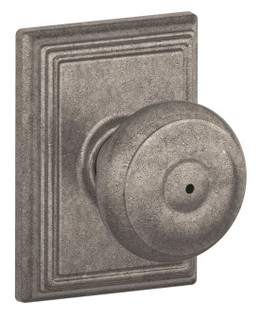

A (Base Dimensions): 2.84" W x 4.00" H x 0.777" Depth
B (Projection From Door): 2-3/8" (60mm)
C (Knob Diameter): 2-3/4" (70mm)
DOOR PREP: Cross Bore: 2-1/8"
Edge Bore: 1"
Latch Face: 1" x 2-1/4"
BACKSET: Adjustable to 2-3/8" or 2-3/4"
DOOR THICKNESS: Standard 1-3/8" to 1-3/4"
LATCH FACEPLATE: 1" x 2-1/4" Latch options include: round corner or drive-in.
STRIKE PLATES: 1-5/8" x 2-1/4" Round Corner Strike.
LATCH BOLT: Plainlatch - 1/2" throw; 7/8" housing
DOOR HANDING: Will work on either right or left hand doors.
ANSI/BHMA: ANSI/BHMA A156.2-2017 Commercial Grade 2, ANSI/BHMA S156.39-2015 Residential Grade AAA.
