Kwikset / Chelsea 910TRL Keypad Handleset / Single Cylinder - SmartKey / Venetian Bronze / 910TRL 815CE 11P SMT

Write a Review
Item: 910trlce11psmt
MSRP: $582.10
$312.98
(You Save: $269.12 )
"Warning": You are selecting an option which does not include an interior pack. Please check box to confirm

Matching Hardware

    34360,34196,32100,35181,29521,30880,29662

Coordinates

Description

Chelsea Single Cylinder Electronic Handleset

The SmartCode Deadbolt with Home Connect Technology featuring Z-Wave enables the door lock to wirelessly communicate with other devices in home. The lock allows the user through a web enabled device to remotely check the door lock status, lock or unlock the door and receive text or email messages. The lock speaks to your security system or home automation controller.

The Kwikset keyless entry, 910 SmartCode Deadbolt, provides you with the latest in lock technology and is designed to make today’s active lifestyle safer and simpler.  This keyless deadbolt lock is not only easy to install, it is easy to program and to use.  Some additional features include:

  • You can store 30 (4-8 digit) user codes.
  • An alarm will sound after three consecutive incorrect codes are entered.
  • The motor-driven deadbolt latch allows for true remote locking and unlocking.
  • SmartKey cylinders feature a stainless steel side locking bar, racks and pins for increased strength and security.
  • There is a low battery indicator light which alerts you when the batteries run low.
CATEGORY:                    Keyless Locks

MANUFACTURER:        Kwikset Corporation

COLLECTION:                Kwikset Signature Series

PRODUCT FAMILY:      Chelsea

STYLE:                             Two-Piece Decorative Handleset

INTERIOR:                      Select Interior Knob or Lever

EXTERIOR:                      Heavy Duty Residential Security / 1" Steel Deadbolt Latch
                                          Solid Forged Brass

BATTERIES:                     4 AA Alkaline (Not Included)

KEYED CYLINDER:         Standard: SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

FINISH:                            Venetian Bronze - 11P

FUNCTION:                     Single Cylinder Handleset / Typically used on front doors.
                                          The handle latchbolt is operated by a thumbpiece on the exterior and a knob or lever on the interior.
                                          The deadbolt is operated by a code or key on the exterior and a thumbturn on the interior.

WARRANTY:                   Manufacturer - Lifetime Mechanical / Lifetime Finish / 1 Year Electronics

SHIPPING WEIGHT:       8.25 lbs.

Helpful Hint:
  • This unit requires the same door preparation as a standard handleset.
  • There is no hard wiring necessary as this unit operates on 4-AA batteries located on the inside of the unit.
  • The interior cover plate is fully finished to match exterior finish.
Please contact us with any questions @ 1-866-755-LOCK (5625).

Chelsea Handleset
Chelsea Handleset Dimensions

A (Exterior Projection From Door):                                                      2-5/32"
B (Cross Bore Hole Spacing - Center to Center):                               5-1/2"
C (Center of Cross Bore Handle Hole to Bottom Tie Bolt/Screw):  9-11/16"
D (Overall Handleset Height):                                                              18-1/2"

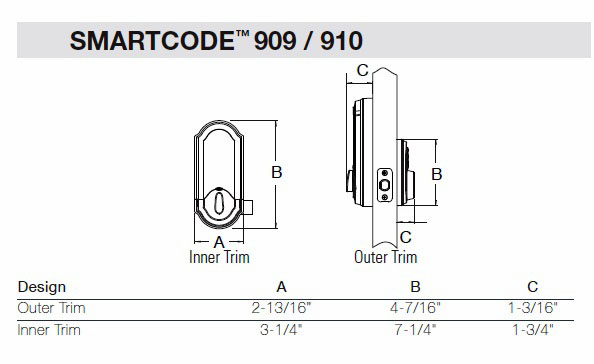

 909 SmartCode Deadbolt Dimensions

DOOR PREP:                Deadbolt:  Cross Bore:  2-1/8" or 1-1/2"
                                                         Edge Bore:  1"
                                                         Latch Face:  1" x 2-1/4"
                                       Handle:     Cross Bore:  2-1/8"
                                                         Edge Bore:  1"
                                                         Latch Face:  1" x 2-1/4"

BACKSET:                     Deadbolt:  Adjustable to 2-3/8" or 2-3/4"
                                        Handle:    Adjustable to 2-3/8" or 2-3/4"

DOOR THICKNESS:      Standard:   1-3/4"
                                        Optional:    2-1/4" thick door pack (See Parts & Accessories)

KEYED CYLINDER:       Standard:    New / SmartKey Cylinder with BumpGuard Feature
                                                             Kwikset SmartKey Cylinder        Kwikset BumpGuard Standard on SmartKey Cylinders

LATCH FACEPLATE:    1" x 2-1/4" Latch options include:  Round Corner, Square Corner or Drive-In.

STRIKE PLATES:           Deadbolt:  Several options available (Strike Plate Options).
                                         Handle:     2-1/4" full lip.  Strike options include:  Round or Square Corner.

LATCH BOLT:                Deadbolt:  Steel Bolt; Full 1" Throw; Roller Pin
                                        Handle:     Plainlatch -  1/2" throw; Nickel Plated.

DOOR HANDING:          Reversible for right or left hand doors.  Specify handing when ordering handed
                                         levers as interior trim for handleset (Interior Knob or Lever Options).

ANSI/BHMA:                   A156.5 Grade 2 for deadbolt.

ADA:                                N/A
