Description

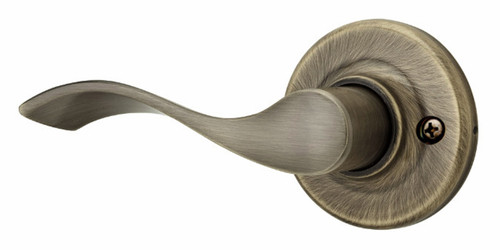

Balboa Lever
The Balboa lever’s wave style design is an attractive addition to any home.
CATEGORY: Door Levers
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset
PRODUCT FAMILY: Balboa
STYLE: Wave, silhouette design.
INTERIOR: Easy to Install / Easy to Operate
FINISH: Antique Brass - 5
FUNCTION: Half Dummy Trim - Surface Mounted
For doors where only a pull is required. No operation.
HANDING: Left Hand - This lever function is handed.
See diagram below.
If you need a Right Hand Dummy Lever, click on "Coordinates" tab above to see all related functions.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: .45 lbs.
Helpful Hint: This is one single lever that screws to the face of the door with two wood screws included for installation.
Please contact us with any questions @ 1-866-755-LOCK (5625).
The Balboa lever’s wave style design is an attractive addition to any home.
CATEGORY: Door Levers
MANUFACTURER: Kwikset Corporation
COLLECTION: Kwikset
PRODUCT FAMILY: Balboa
STYLE: Wave, silhouette design.
INTERIOR: Easy to Install / Easy to Operate
FINISH: Antique Brass - 5
FUNCTION: Half Dummy Trim - Surface Mounted
For doors where only a pull is required. No operation.
HANDING: Left Hand - This lever function is handed.
See diagram below.
If you need a Right Hand Dummy Lever, click on "Coordinates" tab above to see all related functions.
WARRANTY: Manufacturer - Lifetime Mechanical / Lifetime Finish
SHIPPING WEIGHT: .45 lbs.
Helpful Hint: This is one single lever that screws to the face of the door with two wood screws included for installation.
- If you want a dummy lever on both sides of the door, you will need to order two of this item. For handed dummy levers order 1 Right Hand and 1 Left Hand.
- If your door has been pre-drilled with an 1-5/8" or 2-1/8" crossbore hole (standard hole size for functioning door hardware), a dummy function will not work. You can use a passage function without the latch. If you use a passage function, the hardware will not be rigid; it will rotate like a normal passage function.
Please contact us with any questions @ 1-866-755-LOCK (5625).
Balboa Lever
A (Base Diameter): 2-5/8"
B (Lever Length): 4-7/32"
C (Projection From Door): 1-15/16"
A (Base Diameter): 2-5/8"
B (Lever Length): 4-7/32"
C (Projection From Door): 1-15/16"
Balboa Dummy Lever
DOOR PREP: No holes in the door required for mounting.
This lever function screws to the face of the door (two wood screws provided).
BACKSET: N/A
DOOR THICKNESS: N/A
CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: N/A
LATCH BOLT: N/A
DOOR HANDING: This function is handed. This is a left handed lever and is not reversible.
See diagram below.
ANSI/BHMA: A156.2 Grade 3.
ADA: This function satisfies section 4.13.9 ADA requirements.
DOOR PREP: No holes in the door required for mounting.
This lever function screws to the face of the door (two wood screws provided).
BACKSET: N/A
DOOR THICKNESS: N/A
CYLINDER: N/A
LATCH FACEPLATE: N/A
STRIKE PLATES: N/A
LATCH BOLT: N/A
DOOR HANDING: This function is handed. This is a left handed lever and is not reversible.
See diagram below.
ANSI/BHMA: A156.2 Grade 3.
ADA: This function satisfies section 4.13.9 ADA requirements.
